Home Constant Current 100W 800mA OPTOTRONIC Programmable Constant Current Driver by Osram

100W 800mA OPTOTRONIC Programmable Constant Current Driver by Osram

$83.33

  • OPTOTRONIC® Programmable Constant Current Outdoor Dimmable LED Power Supplies by Osram
  • OEM programmable with 1mA resolution to perfectly match LED load and maximize performance
  • Dimming down to 10% on 0-10V dimmers
  • Integrated OEM programmable features include: AstroDIM, LEDset, Constant lumen maintenance, LED thermal protection
  • Programming doesn't require powering up or connecting the power supply to AC line voltage
  • High levels of line transient protection for outdoor applications (6kV)
  • UL Damp and Wet Rated
  • IP66 Rated
  • Universal Input Voltage: 120-277VAC 50/60Hz, 347-480VAC 50/60Hz

Item # 79368

Product # OT100W/UNV/800C/2DIMLT2/P6




Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
OT100W/UNV/800C/2DIMLT2/P6
Brand :
Osram
Max Wattage :
100W
Input Voltage Range :
120V
Output Voltage :
50-185V
Current Range :
3500-800mA
Default Current :
530mA
Dimmable :
0-10V
Dimming Range :
10-100%

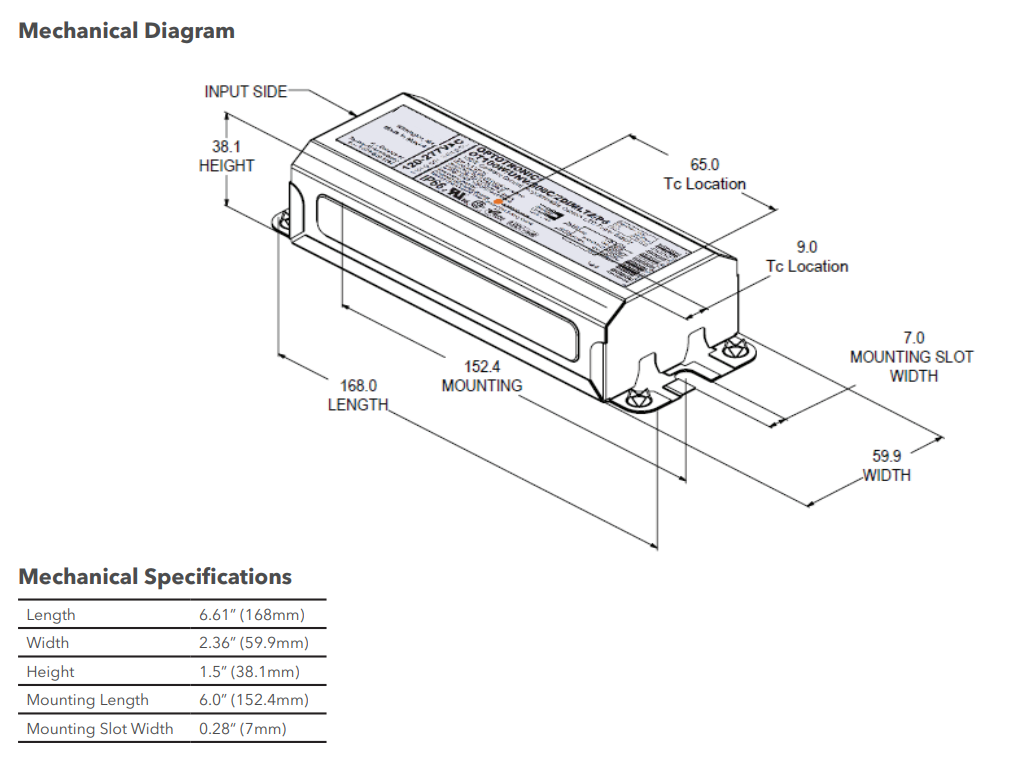

Dimensions (L x W x H) :
6.60" x 2.40" x 1.50"
