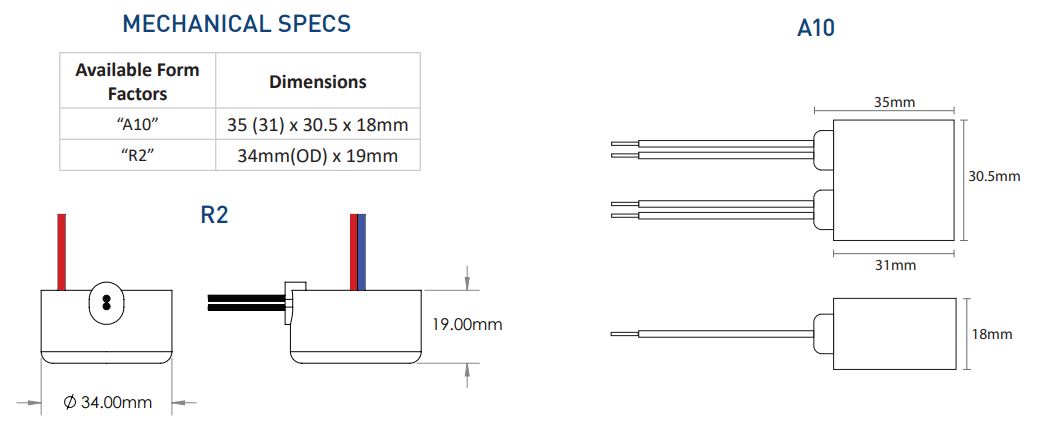

Dimensions
LTF Drivers Dimmer Compatibility List
ELV Dimmer Wiring Diagram

15W DL Series, R2 Constant Current Dimmable LED Driver by LTF

$30.33


This LTF low voltage, constant current dimmable LED driver comes in a small form factor and aluminum casing, junction box mountable with flicker-free dimming and excellent dimming range.

  • Rated for 24V magnetic & electronic transformers
  • Fully dimmable with ELV & Magnetic LV-type dimmers
  • Smooth, flicker-free dimming
  • Title 24 Compliant
  • Excellent choice to integrate in low voltage LED fixtures
  • Aluminum casing for optimal heat dissipation

SKU :
DL215W350C2443-3001-R2
Brand :
LTF
Max Wattage :
15W
Input Voltage Range :
24V
Output Voltage :
24-43V
Current Range :
350mA
Default Current :
350mA
Dimmable :
ELV, MLV
Dimming Range :
0-100%
Dimensions (L x W x H) :
1.44" x 1.44" x 75"
