Home Constant Voltage 192W 24V ADPT-DRJ-192-24 Adaptive Driver with Enclosed Leads and Knockouts by American Lighting
Specification Sheet

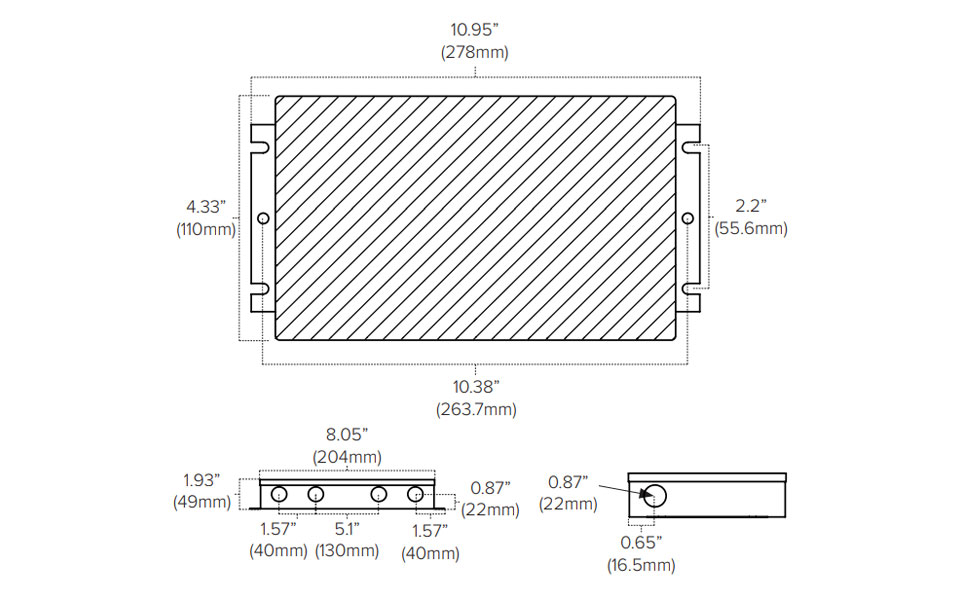

Dimensions

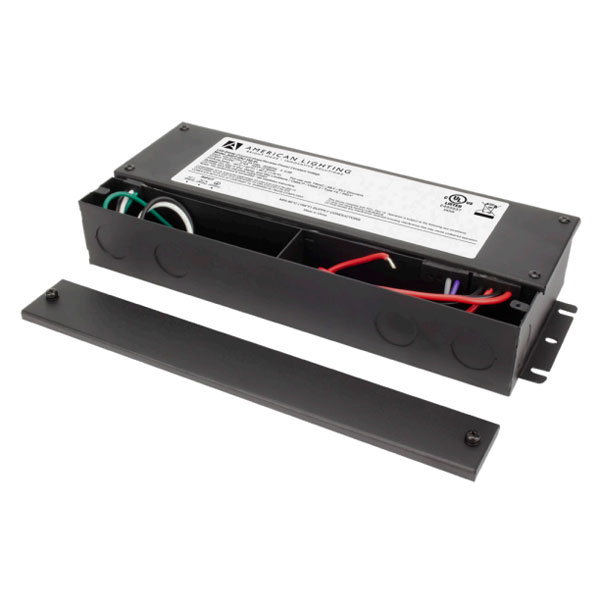

192W 24V ADPT-DRJ-192-24 Adaptive Driver with Enclosed Leads and Knockouts by American Lighting

$999.00

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 24VDC constant voltage hardwire driver
  • Dimmable with standard TRIAC, MLV, and ELV dimmers
  • Forward phase and reverse phase compatible
  • Short circuit, over-load, and over-temperature protections
  • Slim, compact aluminum housing design (only 1.8” tall)
  • Integrated wiring compartment
  • PWM Output with 10-100% load operation
  • Free air convection cooling
  • Class 2, Class P, Type HL, FCC compliant, cULus Listed, Wet location rated


SKU :
ADPT-DRJ-192-24
Brand :
American Lighting
Max Wattage :
192W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
8000mA
Default Current :
8000mA
Dimmable :
ELV, MLV, Phase Cut, PWM, TRIAC
Dimming Range :
0-100%, 10-100%
Dimensions (L x W x H) :
10.93" x 4.15" x 1.80"
