Home Constant Voltage 192W 24V ADPTPRO-DRJ-192-24 Adaptive PRO Driver with Enclosed Leads and Knockouts by American Lighting
Specification Sheet

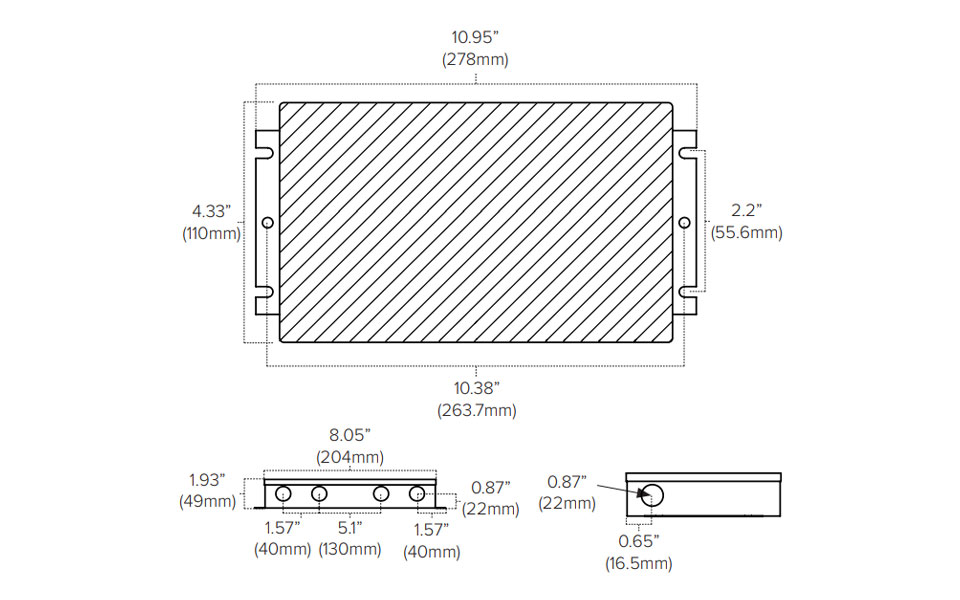

Dimensions

192W 24V ADPTPRO-DRJ-192-24 Adaptive PRO Driver with Enclosed Leads and Knockouts by American Lighting

$999.00

The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application.

  • Slim and compact 24V DC constant voltage hardwire driver
  • Dedicated line voltage and low voltage wiring compartments
  • Multiple 7/8” knock-outs for easy wire configuration
  • Short circuit, over-voltage, over-temperature, overload protections
  • 5-in-1 Forward and Reverse Phase Dimming: ELV / MLV / TRIAC / 0-10V/ 1-10V/Potentiometer / 10V PWM 4-in-1
  • cULus Listed Wet location rated
  • Class 2, Type HL, FCC Compliant


SKU :
ADPTPRO-DRJ-192-24
Brand :
American Lighting
Max Wattage :
192W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
8000mA
Default Current :
8000mA
Dimmable :
0-10V, 1-10V, ELV, MLV, PWM, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
10.94" x 4.33" x 1.88"
