Home Constant Current 25W 120-277V FieldSET/OTi25W/UNV/1A2/1DIM/DIM-1/FS/J20 Optotronics Compact Programmable Dimmable LED Driver by eldoLED
Specification Sheet

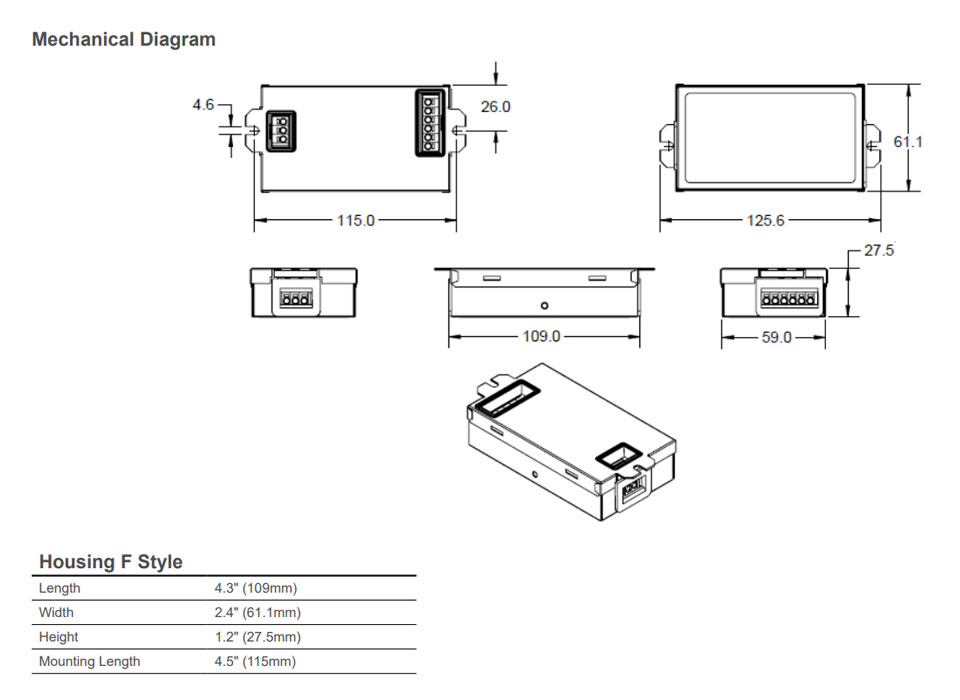

Dimensions

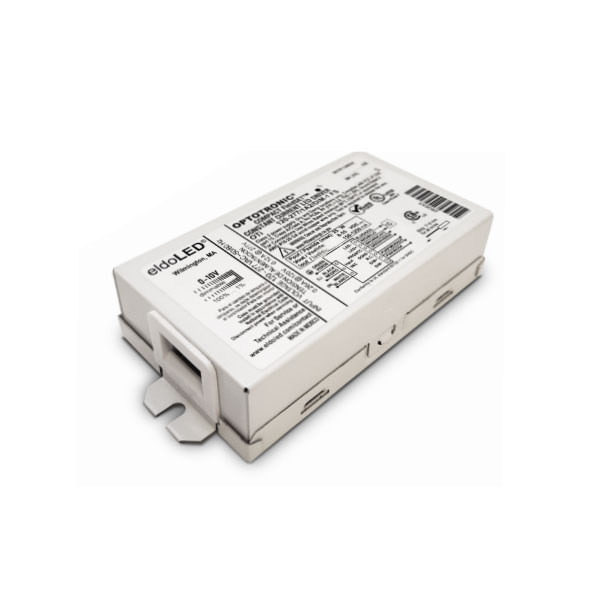

25W 120-277V FieldSET/OTi25W/UNV/1A2/1DIM/DIM-1/FS/J20 Optotronics Compact Programmable Dimmable LED Driver by eldoLED

$54.67


The FieldSET OTi25W is an efficient, dimmable, compact LED driver for indoor applications. This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi25W is designed for in-field programming and replacement.

  • Intended for use in LED fixtures including Indoor, Downlight fixtures
  • 25W Output
  • 0-10V Dimming with 1% Minimum Dim Level


SKU :
FieldSET/OTi25W/UNV/1A2/1DIM/DIM-1/FS/J20
Brand :
EldoLED
Max Wattage :
25W
Input Voltage Range :
120-277V
Output Voltage :
8-55V
Current Range :
150-1250mA
Default Current :
500mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
4.30" x 2.40" x 1.20"
