Home Constant Current 25W 347V OTi25W/347V/1A2/1DIM/DIM-1/J20 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED
Specification Sheet

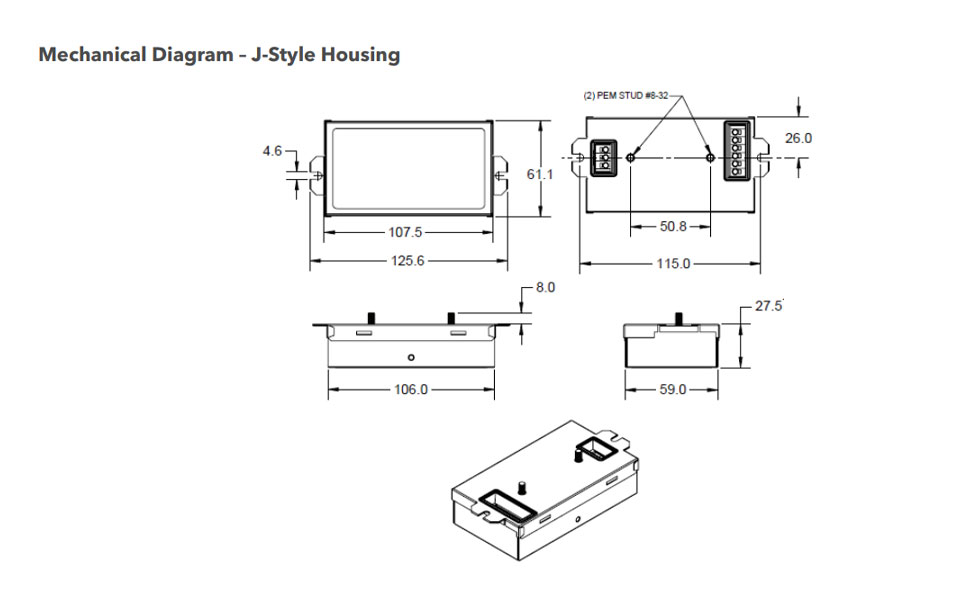

Dimensions

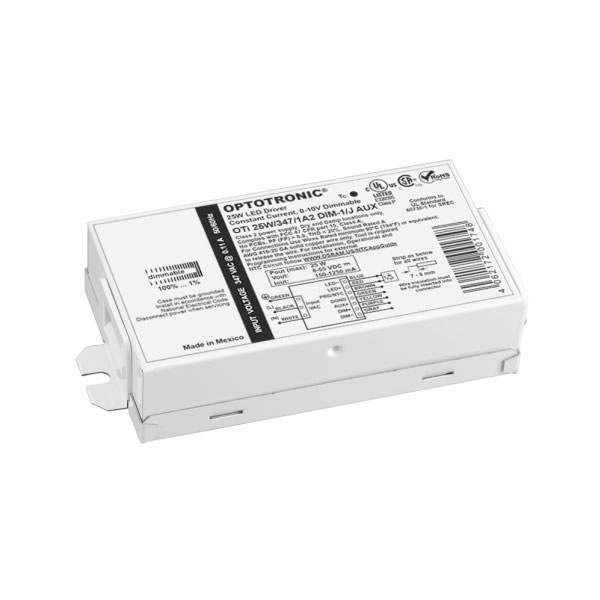

25W 347V OTi25W/347V/1A2/1DIM/DIM-1/J20 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED

$58.33


The OPTOTRONIC® 25W indoor compact programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects. Our 25W compact LED drivers’ programmable output current range (150-1250mA)—coupled with their universal input voltage range (120-277V or 347V)—provides you with a highly efficient and flexible drive solution for indoor lighting. Perfect for downlights, in-grade fixtures, recessed troffer and wall wash lighting for your office and retail applications.


SKU :
OTi25W/347V/1A2/1DIM/DIM-1/J20
Brand :
EldoLED
Max Wattage :
25W
Input Voltage Range :
347V
Output Voltage :
8-55V
Current Range :
150-1250mA
Default Current :
500mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
4.30" x 2.40" x 1.20"
