Home Constant Voltage 300W 24V ADPTPRO-DR-300-24 Adaptive PRO Driver by American Lighting
Specification Sheet

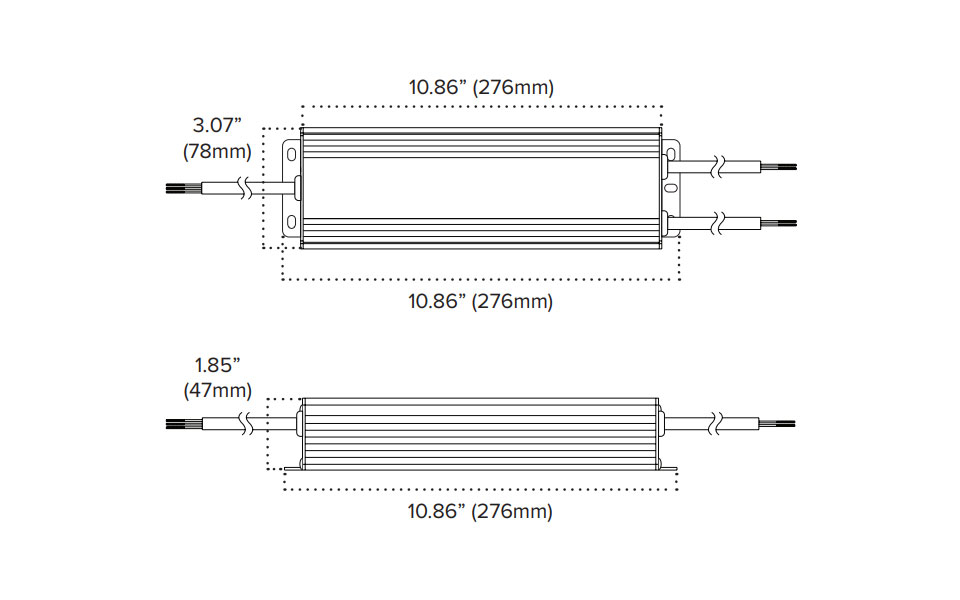

Dimensions

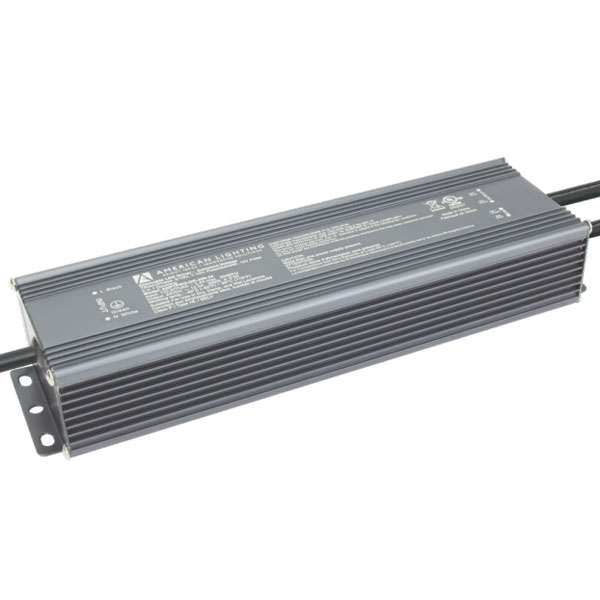

300W 24V ADPTPRO-DR-300-24 Adaptive PRO Driver by American Lighting

$999.00

The Adaptive Pro 5-in-1 dimmable drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a sealed low profile aluminum enclosure. Suitable for outdoor locations.

  • 300W 24V DC constant voltage hardwire driver
  • Class I metal housing (Type HL)
  • 5-in-1 Forward and Reverse Phase Dimming:
  • ELV / MLV / TRIAC / 0-10V/ 1-10V/Potentiometer / 10V PWM 4-in-1
  • Short circuit, over-voltage, over-temperature, overload protections
  • 8” (SJTW) Lead & Tail Wire
  • cULus Listed Wet location rated
  • Class P, Type HL, FCC Compliant


SKU :
ADPTPRO-DR-300-24
Brand :
American Lighting
Max Wattage :
300W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
12500mA
Default Current :
12500mA
Dimmable :
0-10V, 1-10V, ELV, MLV, PWM, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
10.86" x 3.07" x 1.85"
