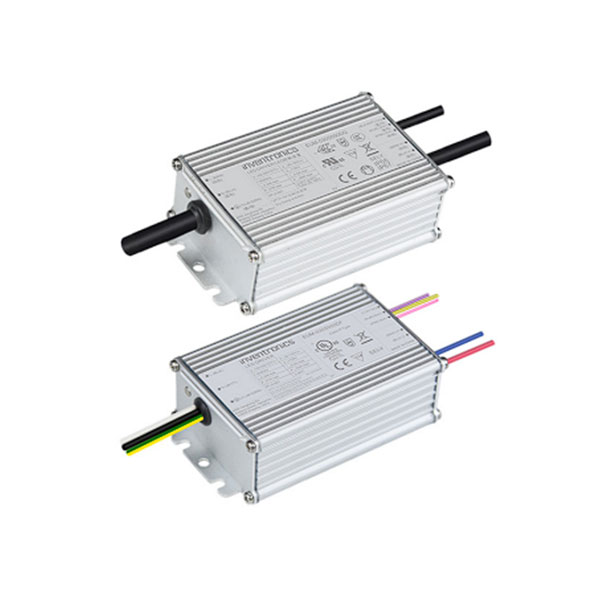

30W 550-1050mA EUM-030S105DF Programmable Constant Current LED Driver by Inventronics
$29.78
The EUM-030SxxxDx series is a 30W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. It is created for many lighting applications including low bay, tunnel and street, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 4kV, CM 6kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location
- Only IP66 and UL Dry/Damp Location (DF models)
- Class 2 & SELV Output
- TYPE HL, for use in a Class I, Division 2 Hazardous
- (Classified) Location
- Suitable for Luminaires with Protection Class I
- 5 Years Warranty
SKU :
EUM-030S105DF
Brand :
Inventronics
Max Wattage :
30W
Input Voltage Range :
90-305V
Output Voltage :
17-54V
Current Range :
550-1050mA
Default Current :
700mA
Dimmable :
0-10V, PWM, Timer
Dimming Range :
0-100%
Dimensions (L x W x H) :
3.75" × 2.52" × 1.44"
