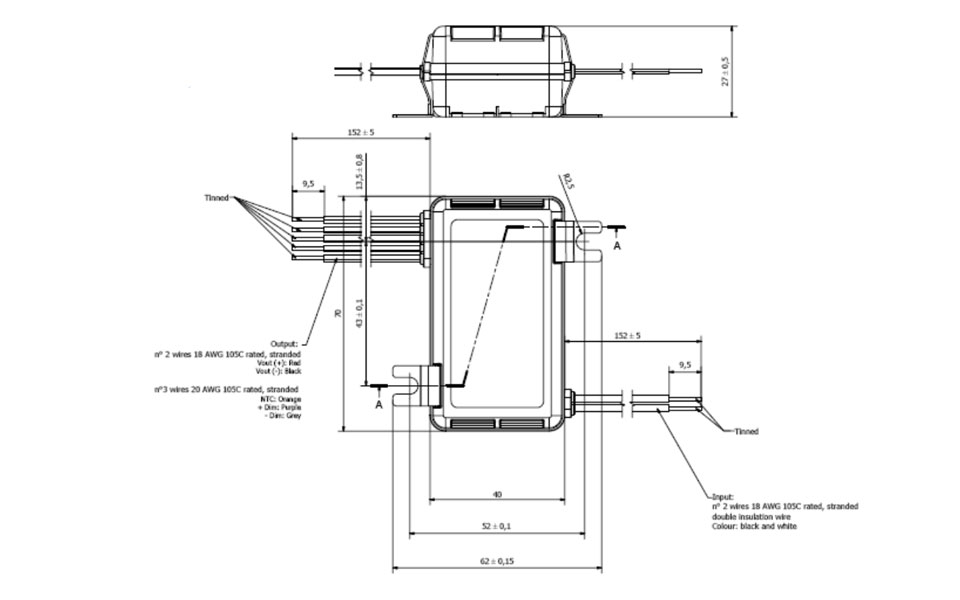

Dimensions

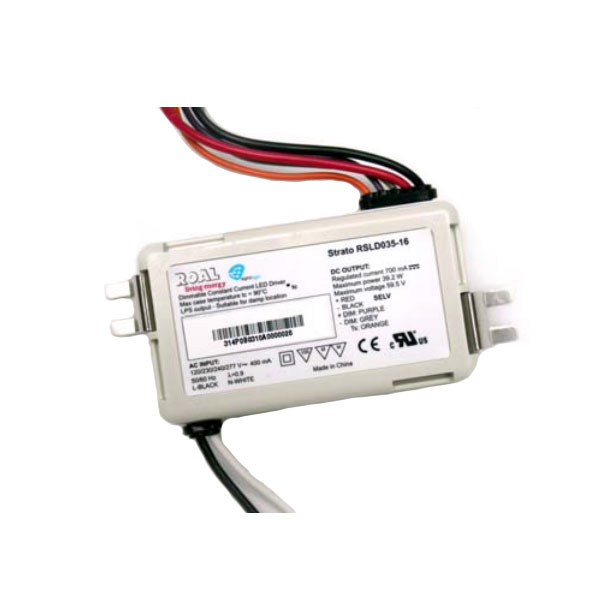

35W RSLD035-09 Constant Current LED Driver by Enedo

$45.88

STRATO switch mode driver technology is designed to generate one constant current output from a wide range AC input. The size and performance of these products make them the ideal choice for LED lighting applications.

  • Wide Range Input: 120, 240, or 277 VAC
  • Constant Current Output for Powering LEDs Directly
  • High Efficiency ~90%
  • Compact Design
  • Adjustable Output Current Settings
  • Dimmable with (0-10VDC) Input
  • Temperature Protection for LEDs
  • Convection Cooled
  • Long Life
  • Wide Temperature Range
  • ROHS Compliant

SKU :
RSLD035-09
Brand :
Enedo
Max Wattage :
35W
Input Voltage Range :
120/240/277V
Output Voltage :
22.5-31.5V
Current Range :
1000mA
Default Current :
1000mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
2.76” x 1.57” x 1.06”
