Home Constant Current 40W 120-277V OTi40W/UNV/1A4/1DIM/DIM-1/J10 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED
Specification Sheet

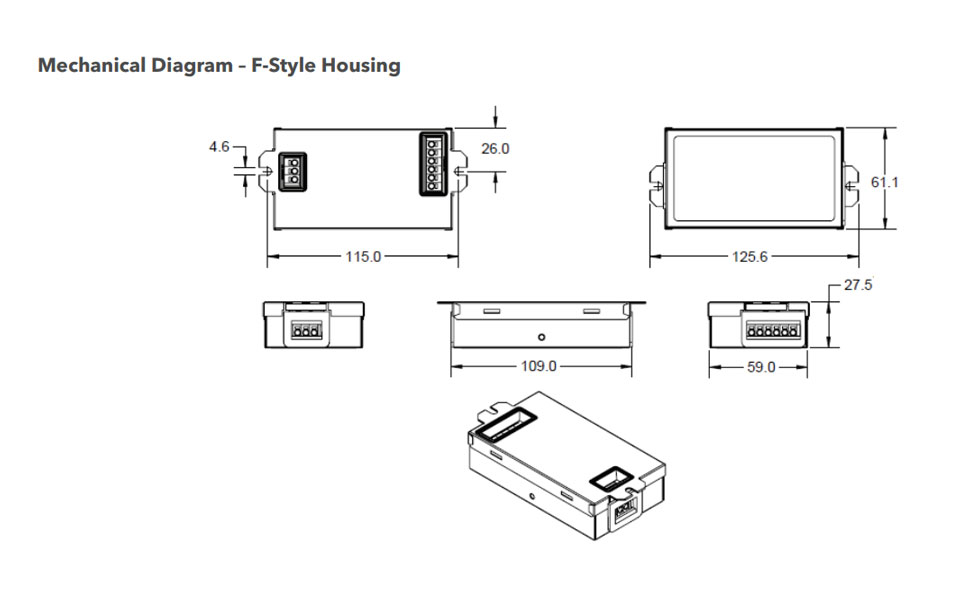

Dimensions

40W 120-277V OTi40W/UNV/1A4/1DIM/DIM-1/J10 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED

$56.67


The OPTOTRONIC® 40W indoor compact programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects. Our 40W compact LED drivers’ programmable output current range (400-1400mA)—coupled with their universal input voltage range (120-277V or 347V)—provides you with a highly efficient and flexible drive solution for indoor lighting. Perfect for downlights, in-grade fixtures, recessed troffer and wall wash lighting for your office and retail applications.


SKU :
OTi40W/UNV/1A4/1DIM/DIM-1/J10
Brand :
EldoLED
Max Wattage :
40W
Input Voltage Range :
120-277V
Output Voltage :
8-55V
Current Range :
400-1400mA
Default Current :
700mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
4.30" x 2.40" x 1.20"
