Home Constant Current 50W 120-277V FieldSET/OTi50W/UNV/1A4/1DIM/DIM-1/FS/J10 Optotronics Linear Programmable Dimmable LED Driver by eldoLED
Specification Sheet

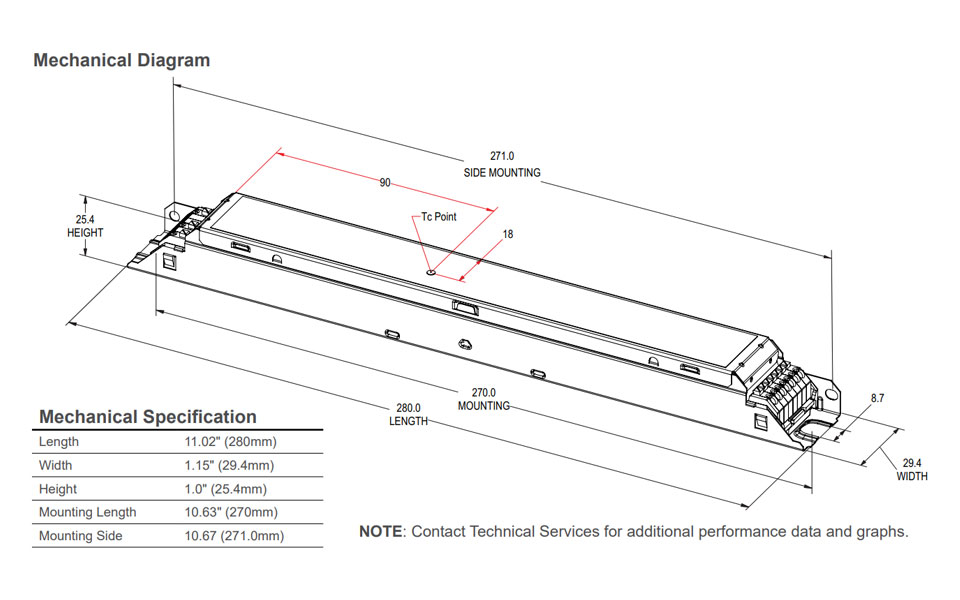

Dimensions

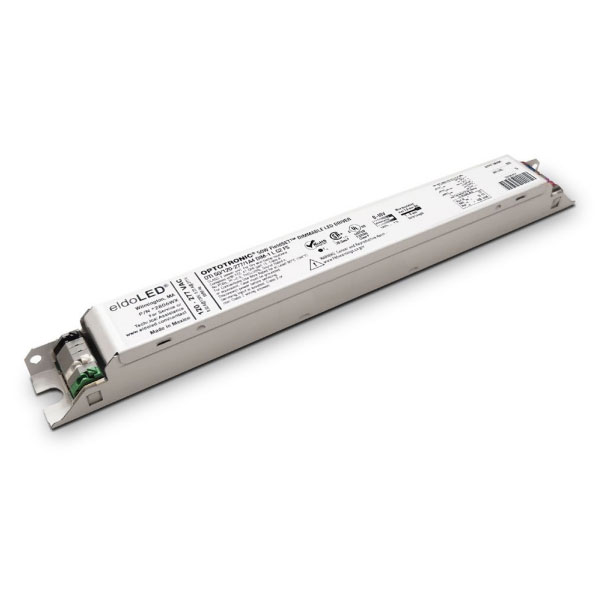

50W 120-277V FieldSET/OTi50W/UNV/1A4/1DIM/DIM-1/FS/J10 Optotronics Linear Programmable Dimmable LED Driver by eldoLED

$54.67


The FieldSET OTi50W is an efficient, dimmable, linear LED driver for indoor applications.This programmable driver is compatible with the FieldSET LED Driver Programming Tool which provides visual and audible feedback programming. The FieldSET OTi50W is ideal for in-field programming and replacement.

  • Intended for use in LED fixtures, including 2x2, 2x4 troffers, linear, strip, and architectural fixtures.
  • 50W Output
  • 0-10V Dimming with 1% Minimum Dim Level


SKU :
FieldSET/OTi50W/UNV/1A4/1DIM/DIM-1/FS/J10
Brand :
EldoLED
Max Wattage :
50W
Input Voltage Range :
120-277V
Output Voltage :
10-55V
Current Range :
400-1400mA
Default Current :
1050mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
11.02" x 1.15" x 1.00"
