Home Constant Current 50W 120-277V OTi50W/UNV/1250C/2DIM/P6/G2 Optotronics Linear Programmable Dimmable LED Driver by eldoLED
Specification Sheet

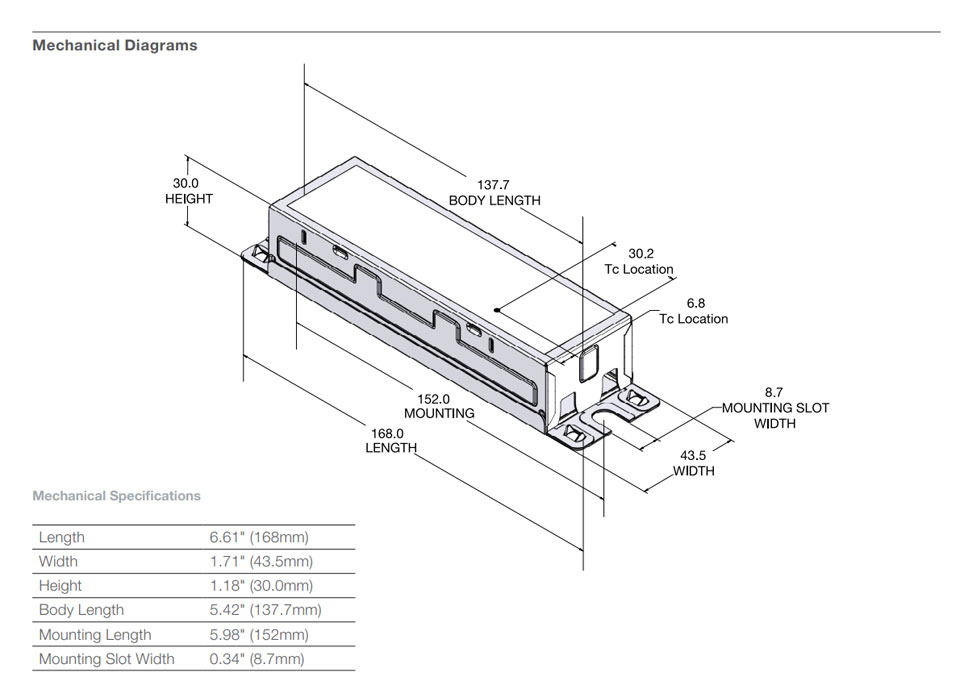

Dimensions

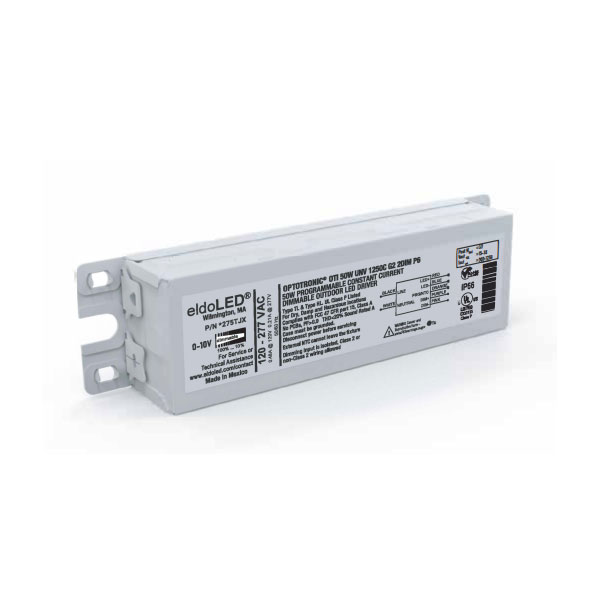

50W 120-277V OTi50W/UNV/1250C/2DIM/P6/G2 Optotronics Linear Programmable Dimmable LED Driver by eldoLED

$64.92


The OPTOTRONIC 50W programmable constant current LED drivers provide flexible input voltage options and wide output current ranges (175 to 2100mA) tailored to the design and mounting heights of street and area applications such as bollards, wall packs, pathway lighting and post-tops as well as low bay industrial luminaires. The OPTOTRONIC 50W LED drivers support smooth, flicker-safe dimming to 10%, electronic dim to off, and 0-10V lighting control, and deliver superior surge protection and power quality immunity.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
OTi50W/UNV/1250C/2DIM/P6/G2
Brand :
EldoLED
Max Wattage :
50W
Input Voltage Range :
120-277V
Output Voltage :
15-55V
Current Range :
300-1250mA
Default Current :
700mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
6.60" x 1.70" x 1.20"
