Home Constant Current 75W 120-277V OTi75W/UNV/2A0/1DIM/DIM-1/J-HOUSING/J20 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED
Specification Sheet

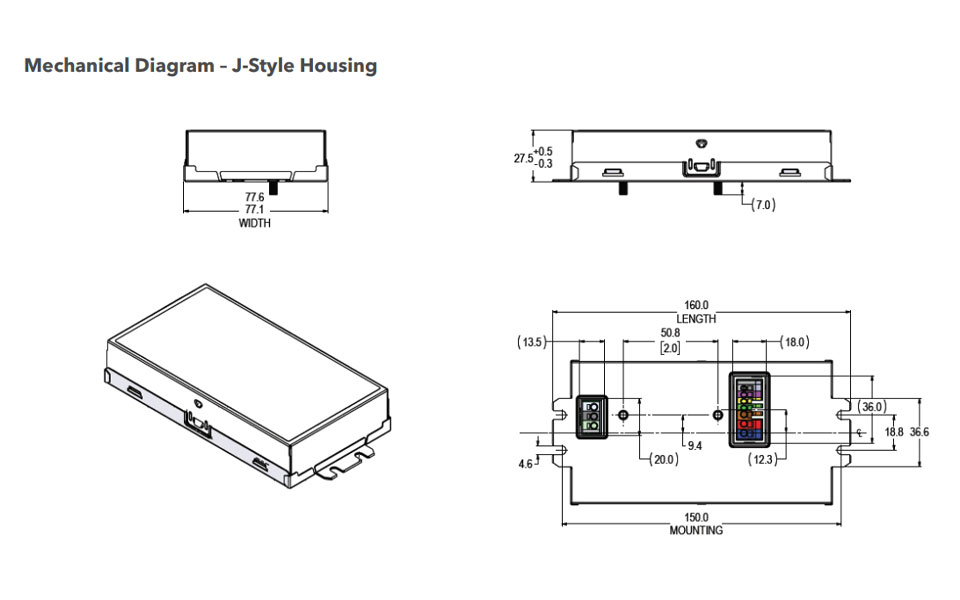

Dimensions

75W 120-277V OTi75W/UNV/2A0/1DIM/DIM-1/J-HOUSING/J20 Optotronic Compact Programmable and Dimmable LED Driver by eldoLED

$75.00


The OPTOTRONIC® 75W indoor high wattage compact programmable LED drivers are exclusive to North America. All of these highly efficient constant current drivers dim to 1% with unique architectural grade features—such as Dim to Off, Vaux Output and Synchronized ON/OFF Timing—to meet the tough demands of your lighting projects. Our 75W high wattage compact LED drivers’ programmable output current range (700-2500 mA)—coupled with their universal input voltage range (120-277V)—provides you with a highly efficient and flexible drive solution for indoor lighting. Perfect for high wattage downlights, recessed troffer and wall wash lighting for your office and retail applications.


SKU :
OTi75W/UNV/2A0/1DIM/DIM-1/J-HOUSING/J20
Brand :
EldoLED
Max Wattage :
75W
Input Voltage Range :
120-277V
Output Voltage :
20-54V
Current Range :
700-2000mA
Default Current :
1000mA
Dimmable :
0-10V
Dimming Range :
1-100%
Dimensions (L x W x H) :
6.30" x 3.00" x 1.20"
