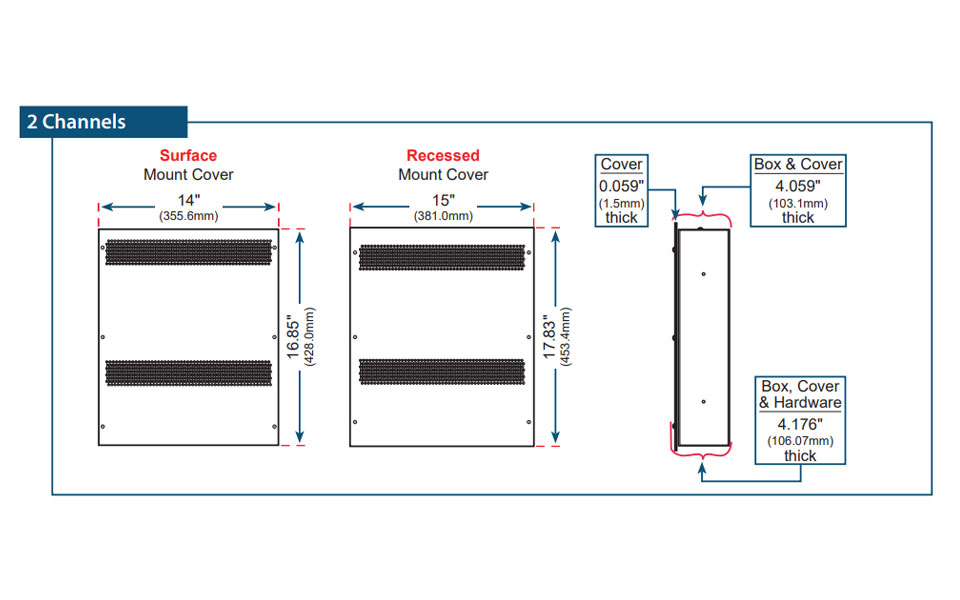

The Junction Box Zone (JBZT) Series delivers a zone dimmable multi-channel solution for select Magnitude Class 2, electronic LED drivers making it the perfect product for multi-output commercial lighting applications. Available in surface or plenum rated recessed mount, the high-quality metal junction box includes multiple 11/₈" knockouts and comes pre-wired for quick and easy installation. The JBZT-SERIES is constructed with a high voltage compartment and utilizes DIN rail terminal blocks to support independent channel outputs.

The phase-cut JBZT-SERIES | SOLIDRIVE PRO-V uses Magnitude’s SOLIDRIVE electronic Class 2, dimmable LED driver. It’s available in 2 to 6 channel configurations with zone dimming across the channels. The driver features hiccup mode, over current and short circuit protection as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE SERIES is phase-cut dimmable down to 0.1%.
