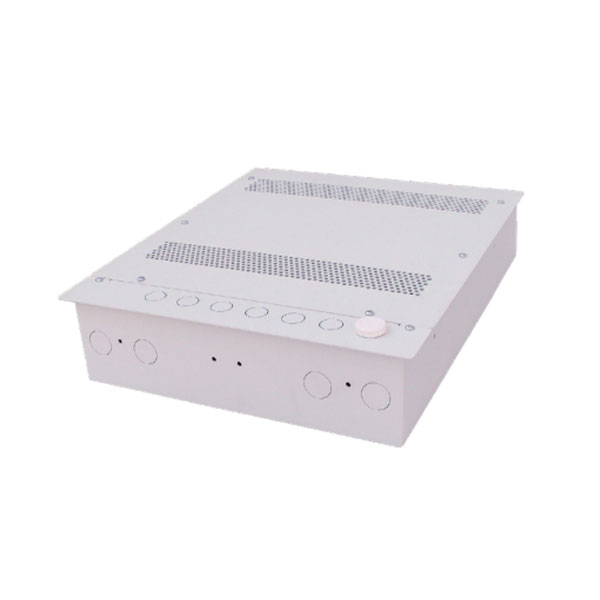

96W 24V 3-Channel JBWR Series VersaDrive 0-10V Constant Voltage LED Driver, 1 Pre-Wired AWN Sensor, Surface Mounting, White Finish by Magnitude

• Lutron Athena AWN sensors factory installed or field installed
• Also compatible with other auxiliary powered wireless nodes
• 22VDC Aux Output (powers accessories that operate between 12VDC and 24VDC)
• PWM Output for consistent performance with different types of LED tape and flicker-free dimming down to 1%
• Drivers installed & pre-wired, saving time in the field
• Reduces installation time & provides easy maintenance access
• Covered & ventilated enclosures
• Recessed mountable - fits between standard wall studs
• Assembly is UL 2108 Listed, Class 2, CSA C22.2 No. 250.2

Specification Overview

• 0-10V Dimming
• Multi-Channel output (96W per Channel)
• All drivers are home runs to line voltage compartment
• Universal input voltage 120 to 277VAC
• Class 2, Constant Voltage 24VDC output

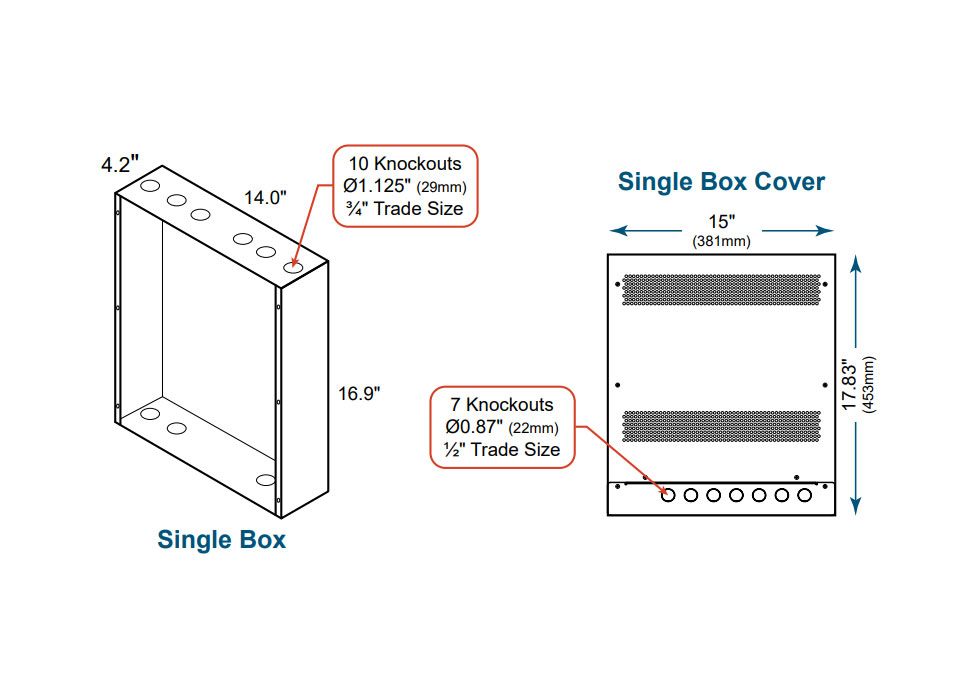

• Multiple 1-1/8" (3/4" trade size) knockouts and seven 0.87" (1/2" trade size) knockouts on cover
• 5-year warranty
