96W 24V 4-Channel JBZN E-Series Constant Voltage Electronic Driver with Recessed Mounting by Magnitude
$1, 094.04

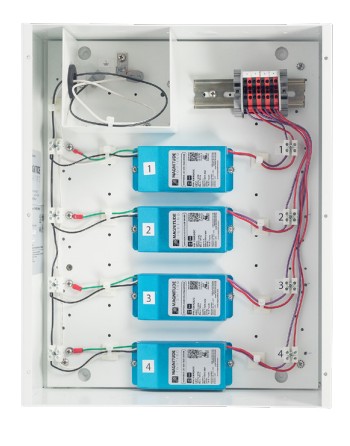

The Junction Box (JB) Series delivers a multi-channel, specification grade solution for Class 2 LED drivers, perfect product for multi-output residential and commercial lighting applications.
- Integrated junction box with multiple 1¹/8" knockouts
- Class 2 LED drivers
- Phase-cut dimmable down to 1% with forward phase TRIAC dimmers
- Zone dimming and switching capable for all channels
- Input: 120VAC, 50/60Hz
- Output: 24 VDC or 12 VDC
- UL listed dry location
- UL2108 CSA C22.2 No. 250.0-08 certifications
- 5-year warranty
SKU :
JBZN-4-E96R24DC-RW
Brand :
Magnitude
Max Wattage :
96W per channel
Input Voltage Range :
120V
Output Voltage :
24V
Current Range :
4100mA
Default Current :
4100mA
Dimmable :
Phase Cut, TRIAC
Dimming Range :
1-100%
Dimensions (L x W x H) :
17.83" x 15.00" x 4.17"
