Home Constant Voltage 96W 24V 4000mA PS-PH-D-96-24-WD Constant Voltage Power Supply by Luminii
Specification Sheet
Installation Instructions
Dimensions

96W 24V 4000mA PS-PH-D-96-24-WD Constant Voltage Power Supply by Luminii

$506.25

  • Constant voltage output
  • Input Voltage, 120-277 VAC
  • Compatible with Triac, MLV, & ELV Dimmers
  • Flicker-free dimming
  • Cooling by free air convection
  • Full protection metal case
  • Auto reset breakers, from short circuit, overloading, & over temperature
  • Dry location (IP20)
  • 5 year Warranty

SKU :
PS-PH-D-96-24-WD
Brand :
Luminii
Max Wattage :
96W
Input Voltage Range :
120-277V
Output Voltage :
24V
Current Range :
4000mA
Default Current :
4000mA
Dimmable :
ELV, MLV, TRIAC
Dimming Range :
1-100%

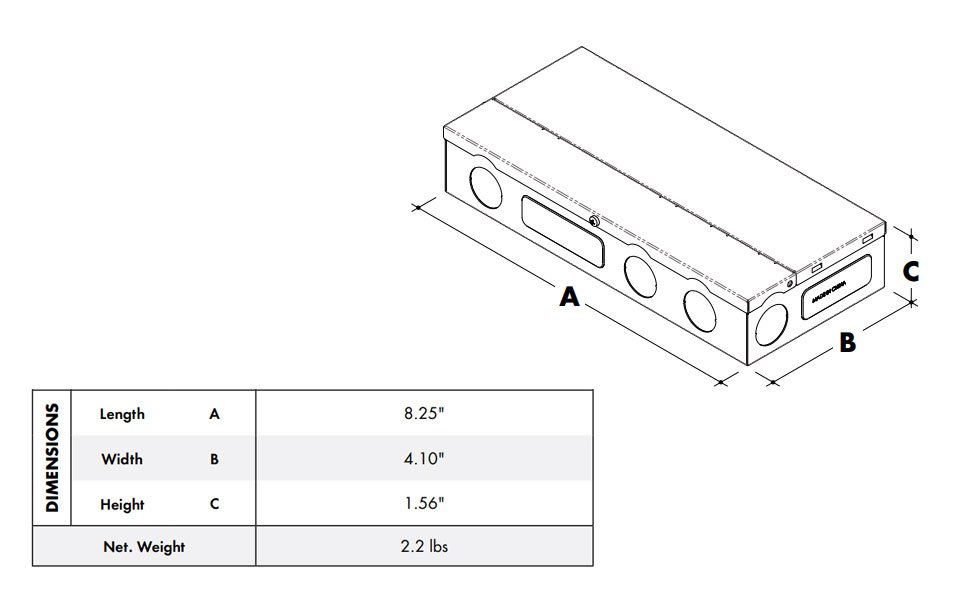

Dimensions (L x W x H) :
8.25" x 4.10" x 1.56"
