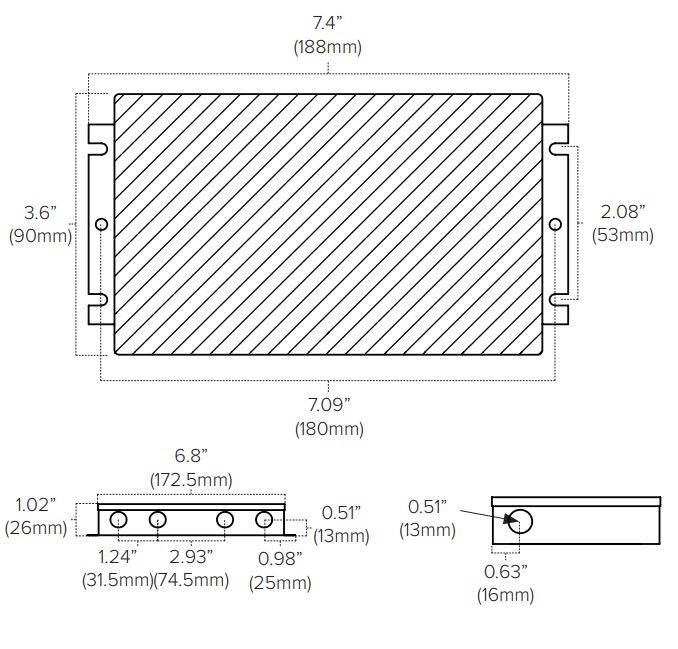

Dimensions

ADPT-DRJ-60-24 60W 24V Adaptive LED Driver by American Lighting

$127.83

The Adaptive LED Driver series are class 2 rated and designed to operate with any standard ELV, MLV, & Incandescent TRIAC (Leading edge) dimmer switch and is forward phase and reverse phase compatible. Encased in a low profile aluminum enclosure that includes knock-outs for easy and quick installation makes it the perfect choice for under cabinet lights, tape light and various LED fixture installations.

  • 12V or 24V DC constant voltage hardwire driver
  • Dimmable with standard TRIAC, MLV, and ELV dimmers, forward phase and reverse phase compatible
  • Short circuit, over-load, and over-temperature protections
  • Slim, compact aluminum housing design, with integrated wiring compartment, free air convection cooling
  • Class 2, Class P, Type HL, FCC compliant, cULus Listed, Wet location rated


SKU :
ADPT-DRJ-60-24
Brand :
American Lighting
Max Wattage :
60W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
250-2500mA
Default Current :
2500mA
Dimmable :
ELV, MLV, PWM, TRIAC
Dimming Range :
10-100%
Dimensions (L x W x H) :
7.40" x 3.54" x 1.02"
