Home Constant Voltage 60W 12V 4-in-1 PowerFactor Wet Location Dimmable Driver with Junction Box by Alloy LED
Specification Sheet

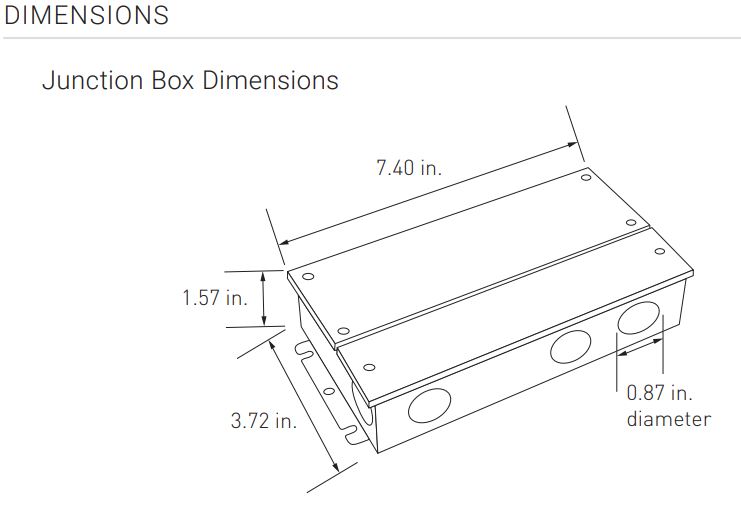

Dimensions
Dimmer Compatibility Chart

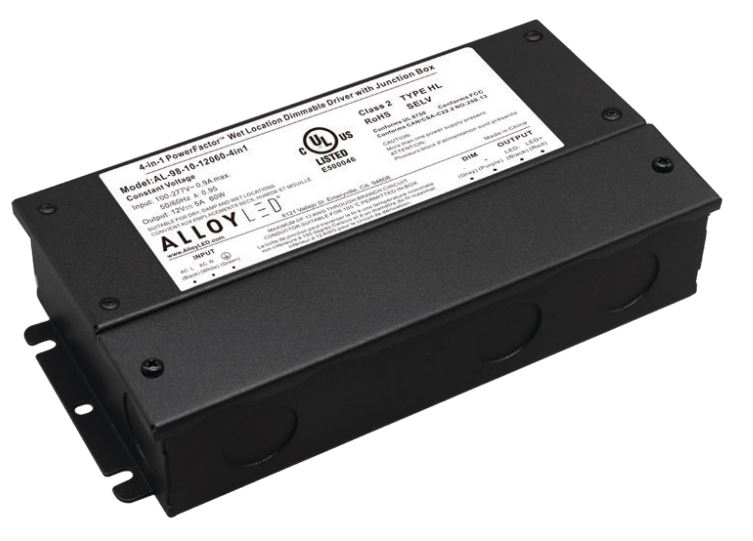

60W 12V 4-in-1 PowerFactor Wet Location Dimmable Driver with Junction Box by Alloy LED

$158.33

4-in-1 PowerFactorâ„¢ Dimmable Drivers provide smooth, stable, and efficient dimming capability for LED lighting. They are compatible with many models of MLV (forward phase dimming), ELV (reverse phase dimming), 0-10V dimming, and 1-10V dimming. This sophisticated power supply is available in a dry/damp/wet environment model to fit most installations.

  • With integrated junction box
  • 99% PowerFactor
  • 100% maximum load, 10% minimum load
  • Class 2
  • Dry/damp/wet environment certified
  • 6-year limited warranty






SKU :
AL-98-10-12060-4in1
Brand :
Alloy LED
Max Wattage :
60W
Input Voltage Range :
120-277V
Output Voltage :
12V
Current Range :
500-5000mA
Default Current :
500mA
Dimmable :
0-10V, 1-10V, ELV, MLV
Dimming Range :
0-100%, 1-100%
Dimensions (L x W x H) :
7.40" x 3.72" x 1.57"
