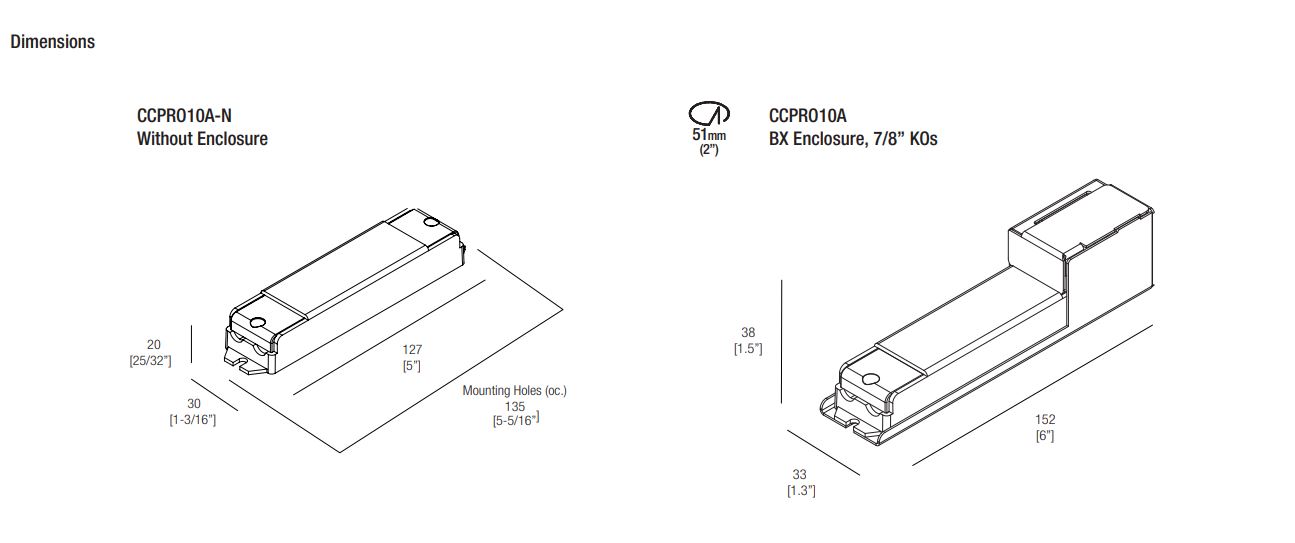

Dimensions

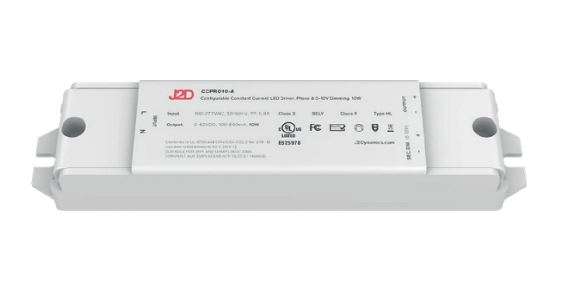

CCPRO10-A 10W Configurable Constant Current LED Driver by Flexalighting

From : $99.99

High efficiency, flicker free dimming. With its wide operating window, multiple dimming control protocols, configurable current, and optional enclosure, the CCPRO10A provides the user with a high level of flexibility.

  • Made of PMMA, Polycarbonate
  • Screw-down fixing type
  • Dip Switch Configurable
  • Integrated Protection - Thermal Cutoff, Short Circuit, Overload, Reverse Polarity
  • 50,000 hours lifetime




Form Factor :

Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
CCPRO-10V
Brand :
Flexalighting
Max Wattage :
10W
Input Voltage Range :
100-277V
Output Voltage :
3-42V
Current Range :
150-500mA
Default Current :
Dimmable :
0-10V, Phase Cut
Dimming Range :
1-100%
