Home Constant Current D10CC150HVT-F 150W 1050mA Everline High Voltage LED Driver by Universal
Specification Sheet

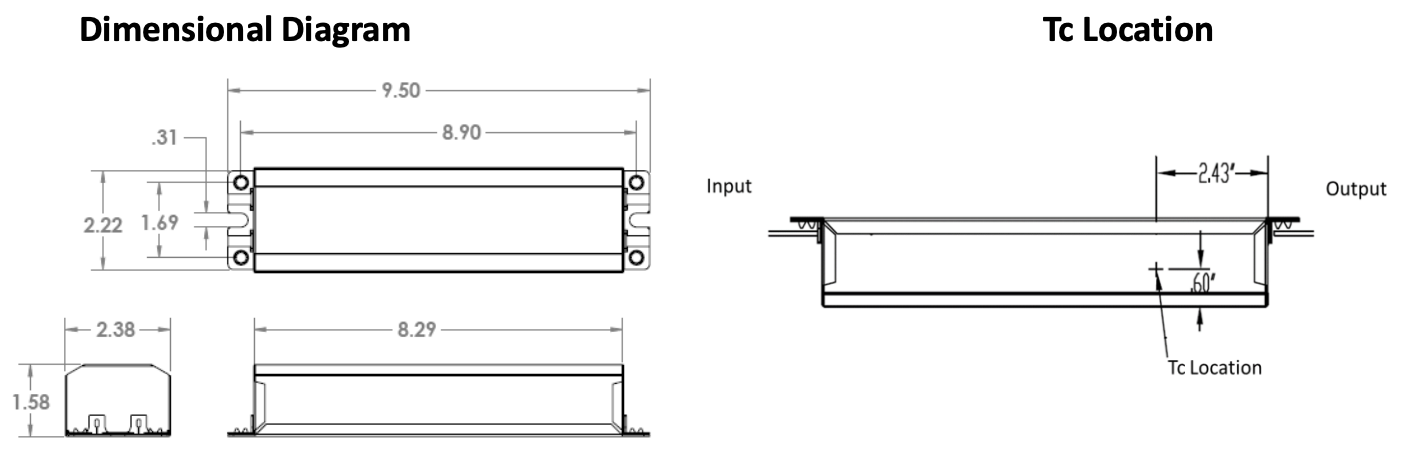

Dimensions

D10CC150HVT-F 150W 1050mA Everline High Voltage LED Driver by Universal

$102.12

  • High Range Input Voltage 347–480V
  • 0-10V Dimming to 10%
  • Thermal Foldback Control
  • Enhanced transient protection (6kV)
  • Reduced EMI allow multiple drivers in a single fixture
  • UL Dry and Damp Location Rated, Type HL
Part No.: D10CC150HVT-F

width=  NoteProduct has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
D10CC150HVT-F
Brand :
Universal Lighting Technologies
Max Wattage :
150W
Input Voltage Range :
347-480V
Output Voltage :
50-143V
Current Range :
105-1050mA
Default Current :
1050mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
9.50" x 2.40" x 1.55"
