Home Constant Current D14CC150UVT-F 150W 1400mA Everline Universal Voltage LED Driver by Universal Lighting
Specification Sheet

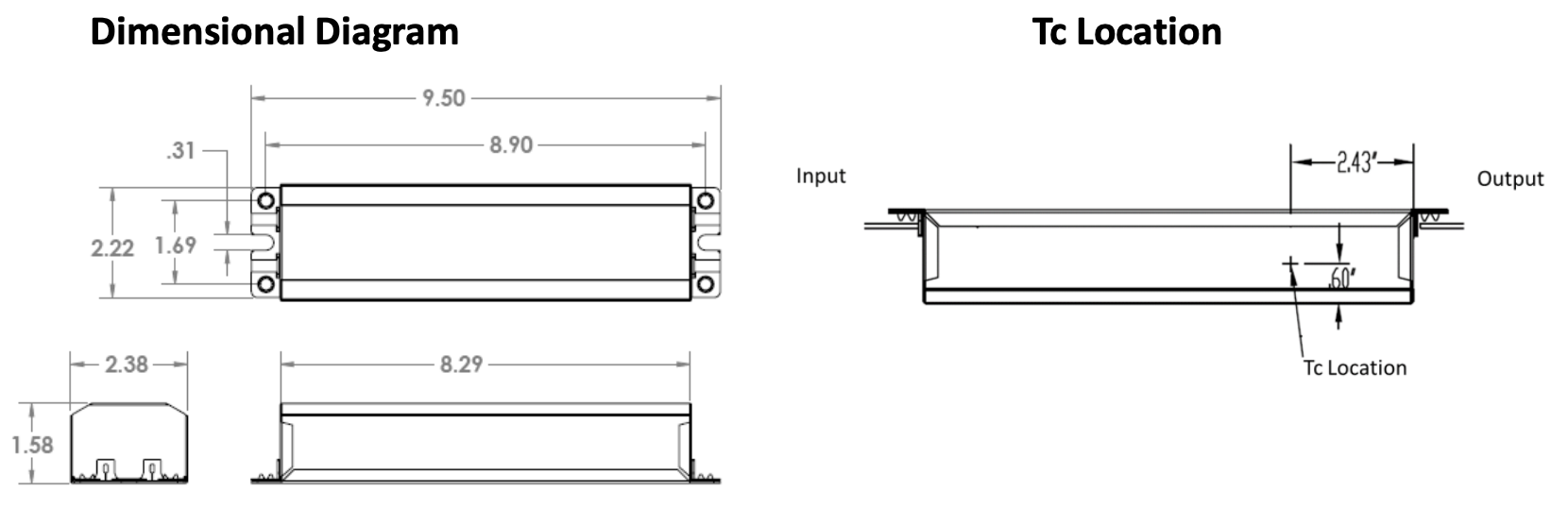

Dimensions

D14CC150UVT-F 150W 1400mA Everline Universal Voltage LED Driver by Universal Lighting

$72.15

  • Universal input voltage 120–277V
  • 0-10V Dimming to 10%
  • Thermal Foldback Control
  • Enhanced transient protection (6kV)
  • Reduced EMI allow multiple drivers in a single fixture
  • UL Dry and Damp Location Rated, Type HL
Part No.: D14CC150UVT-F

width=  NoteProduct has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
D14CC150UVT-F
Brand :
Universal Lighting Technologies
Max Wattage :
150W
Input Voltage Range :
120-277V
Output Voltage :
38‐107V
Current Range :
140‐1400mA
Default Current :
1400mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
9.50" x 2.40" x 1.55"
