Home Constant Current D15CC55UNVPW-C 55W 1500mA Programmable Constant Current LED Driver by Universal
Specification Sheet
Dimensions

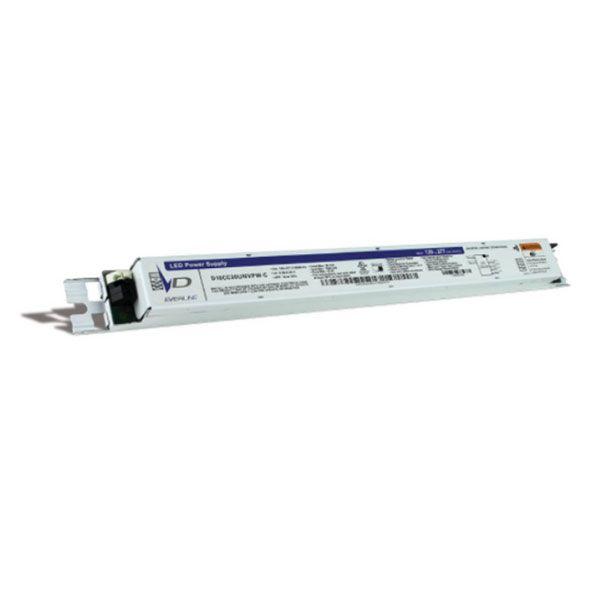

D15CC55UNVPW-C 55W 1500mA Programmable Constant Current LED Driver by Universal

$48.95

The EVERLINE PW series of Constant Current Linear LED Drivers features wireless programming, dim to off (programmable) and configurable dimming curves.

  • Constant Current LED Driver
  • 0-10V Dimming to 1% standard or dim-to-off upon request.
  • Output Power 55W
  • Input Voltage: Universal 120~277V
  • Output Voltage: 16V to 37V @ 1.50 Amps 16V to 56V @ 0.98 Amps
  • Max Output Current 1500mA
  • Start Temp. (Min) -40C (-40F)
  • UL Damp/Dry location rated
  • Class 2 rated


width=  NoteProduct has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
D15CC55UNVPW-C
Brand :
Universal Lighting Technologies
Max Wattage :
55W
Input Voltage Range :
120-277V
Output Voltage :
16-56V
Current Range :
1500mA
Default Current :
1500mA
Dimmable :
0-10V
Dimming Range :
0-100%
Dimensions (L x W x H) :
14.25" x 1.17" x 1.00"
