Home Constant Current D530C150UV10F 150W 530mA Everline Universal Voltage LED Driver by Universal
Specification Sheet

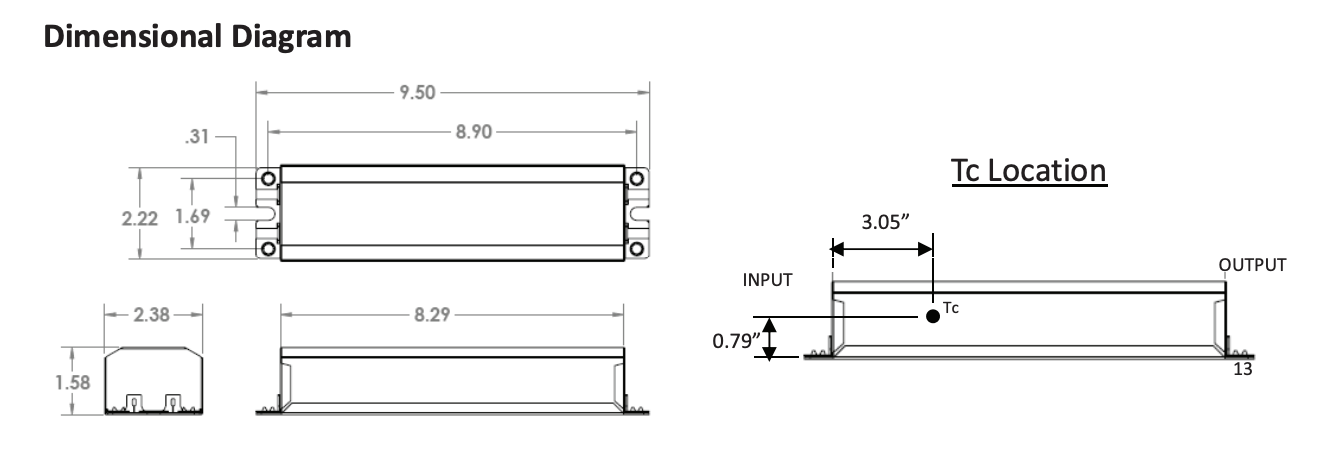

Dimensions

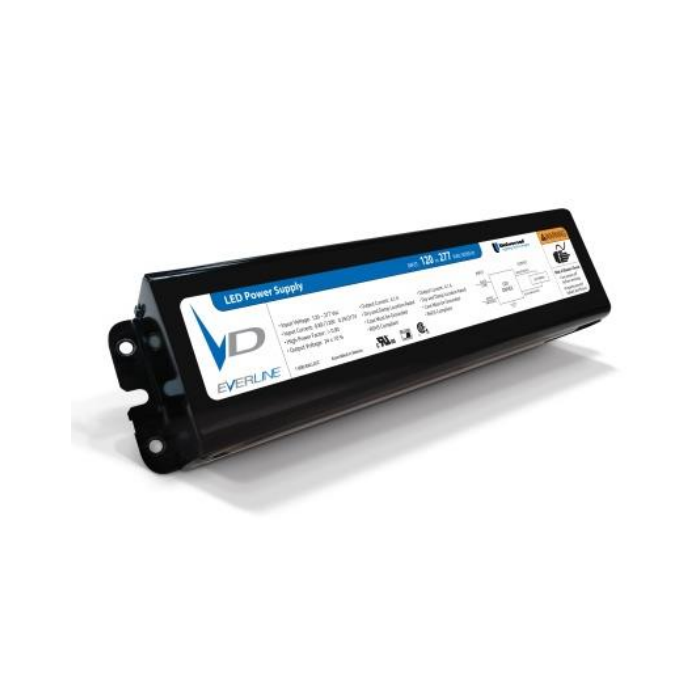

D530C150UV10F 150W 530mA Everline Universal Voltage LED Driver by Universal

$99.99

  • Universal input voltage 120–277V
  • 0-10V Dimming to 10%
  • Thermal Foldback Control
  • Enhanced transient protection (6kV)
  • Reduced EMI allow multiple drivers in a single fixture
  • UL Dry and Damp Location Rated, Type HL
Part No.: D530C150UV10F

width=  NoteProduct has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
D530C150UV10F
Brand :
Universal Lighting Technologies
Max Wattage :
150W
Input Voltage Range :
120-277V
Output Voltage :
99-285V
Current Range :
53-530mA
Default Current :
530mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
9.50" x 2.40" x 1.55"
