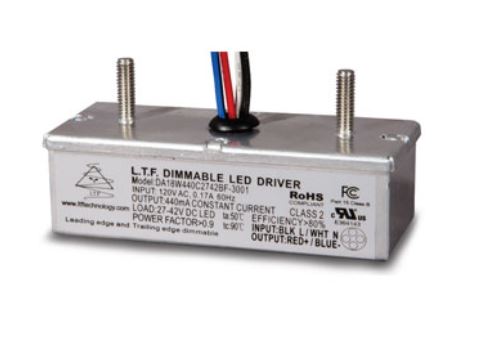

18W DA Series Constant Current Dimmable LED Driver by LTF

$47.52


This LTF low voltage, constant current dimmable LED driver comes in a small form factor and aluminum casing, with flicker-free dimming and excellent dimming range.

  • Isolated output power per NEC and UL safety requirements
  • UL and ETL recognized/ Listed, UL 8750, 1310
  • Auto-reset; short circuit, overload and thermal protection
  • Dimmable with ELV & Triac Dimmers
  • Aluminum casing for optimal heat dissipation
  • Low profile, small form factor

SKU :
DA18W440C1040BF
Brand :
LTF
Max Wattage :
18W
Input Voltage Range :
120V
Output Voltage :
10-40V
Current Range :
440mA
Default Current :
440mA
Dimmable :
ELV, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
3.05" x 1.50" x 0.96"
