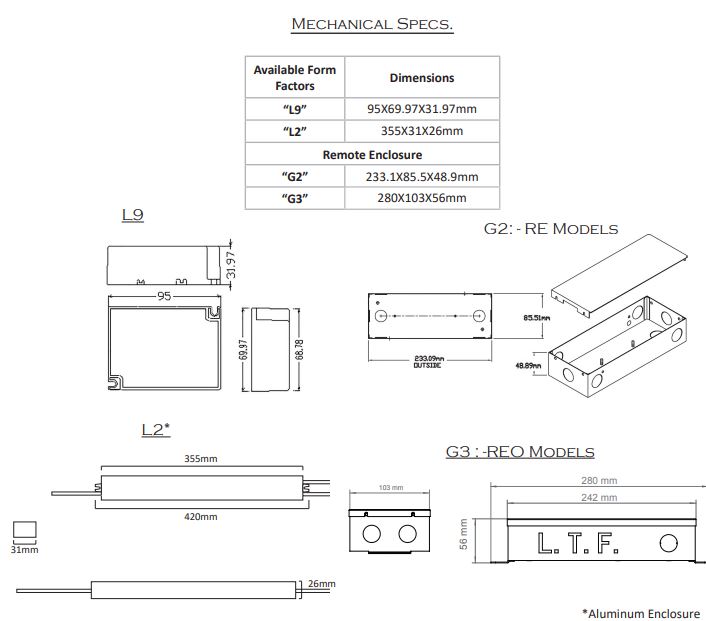

Dimensions
LTF Drivers Dimmer Compatibility List
0-10V Dimmer Wiring Diagram

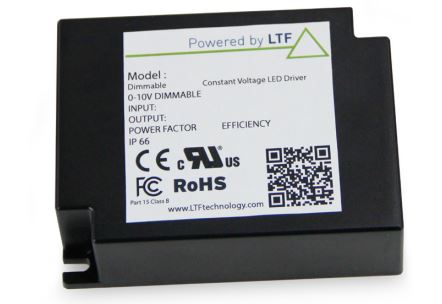

40W DS Series Constant Current Dimmable LED Driver by LTF

From : $60.19


This LTF constant current dimmable LED driver comes in a small form factor with flicker-free dimming and excellent dimming range.

  • Meet the RoHS directive; IP66 compliant
  • Suitable for high-temperature, high-dust location
  • Suitable for indoor or outdoor applications
  • Suitable in standard electrical junction boxes
  • Compact, lightweight
  • Active PFC reduces power consumption
  • Isolation between primary and secondary

Form Factor :
SKU :
DS40W1100C2037LI
Brand :
LTF
Max Wattage :
40W
Input Voltage Range :
90-305V
Output Voltage :
20-37V
Current Range :
1100mA
Default Current :
1100mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
3.74" x 2.75" x 1.26"
