Home Constant Current 75W DS Series Constant Current Dimmable LED Driver by LTF
Specification Sheet

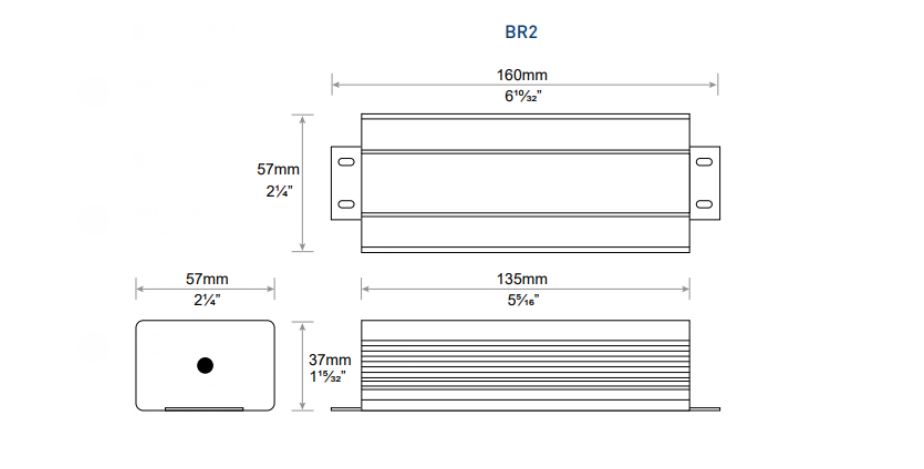

Dimensions
LTF Drivers Dimmer Compatibility List
TRIAC Dimmer Wiring Diagram
ELV Dimmer Wiring Diagram
0-10V Dimmer Wiring Diagram

75W DS Series Constant Current Dimmable LED Driver by LTF

$92.08


LTF’s innovative universal input, True Tri Mode Dimmable UniDriver Series LED power supplies have simplified driver selection for OEMs and specifiers throughout the lighting industry.

  • True Tri Mode dimming at all input voltages
  • TRIAC, ELV, 0-10V (Current Sinking)
  • Universal input 100-277V AC 50/60Hz
  • Title 24 compliant
  • Efficient, flicker-free operation and dimming
  • 5, 7, or 10-year warranty available

SKU :
DS75W1330C3056BR2UD
Brand :
LTF
Max Wattage :
75W
Input Voltage Range :
120-277V
Output Voltage :
30-56V
Current Range :
1330mA
Default Current :
1330mA
Dimmable :
0-10V, ELV, TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
6.30" x 2.24" 1.46"
