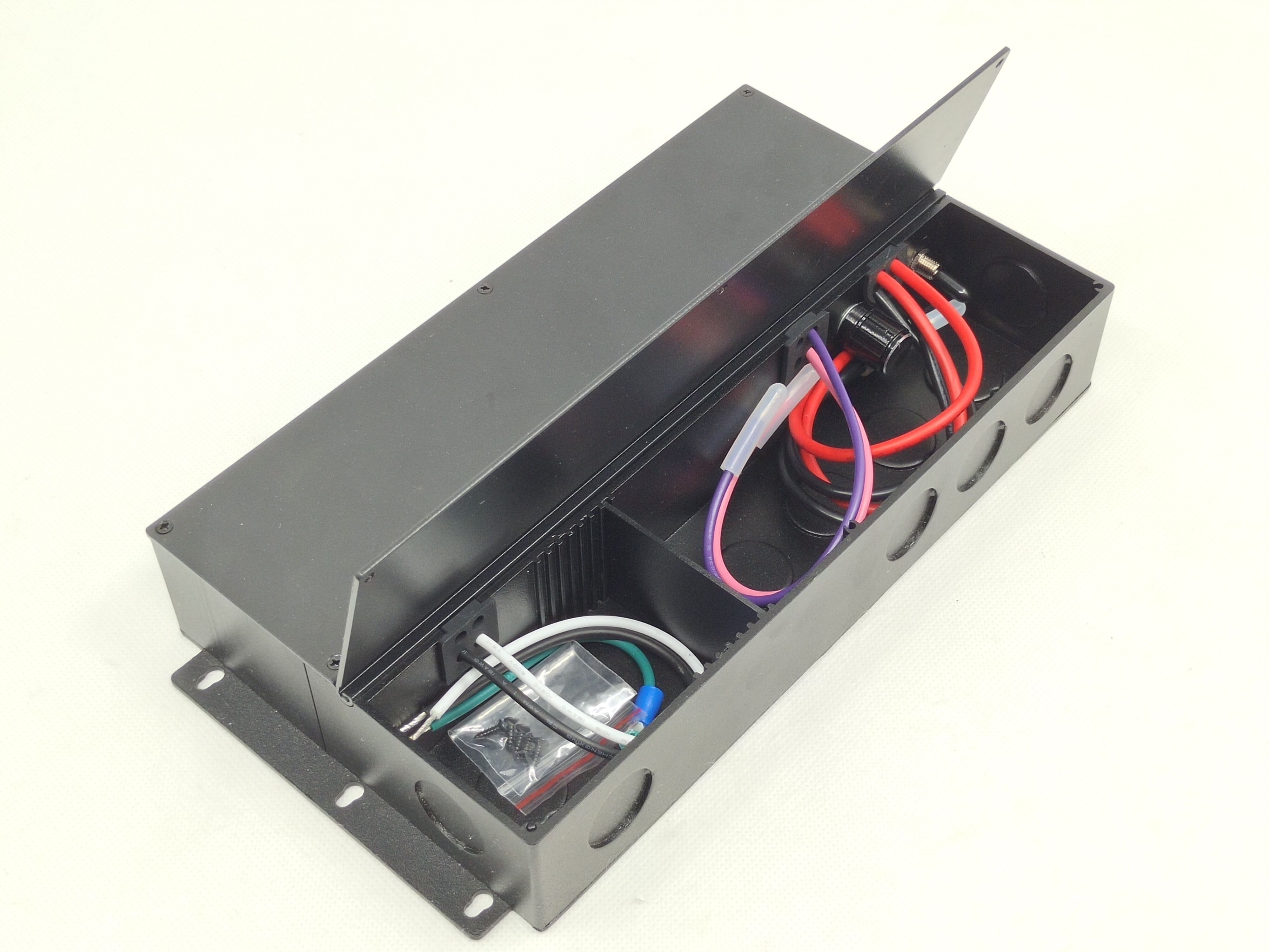

ECV30-24DC-UD Class 2 Electronic Class P UNIV 5 in 1 Dimming Driver by EMCOD
$106.67
- Input Voltage: 100-277V 50/60Hz
- Max. input current at full load: 0.5A
- Output voltage without load: 24.1VDC
- Output voltage fully loaded: 24VDC
- Max. Total Wattage: 30W
- Max. Output Current: 1.3A
- Efficiency: 78%
- Load regulation: 1%
SKU :
ECV30-24DC-UD
Brand :
Emcod
Max Wattage :
30W
Input Voltage Range :
100-277V
Output Voltage :
24V
Current Range :
500-1300mA
Default Current :
500mA
Dimmable :
0-10V, 1-10V, PWM, Resistor, TRIAC
Dimming Range :
0-100%

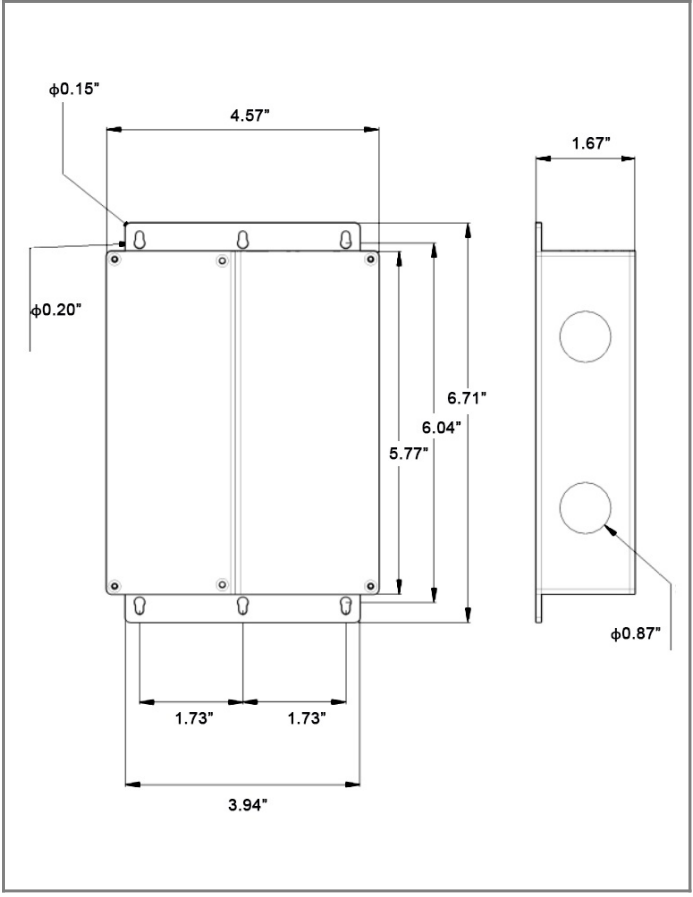

Dimensions (L x W x H) :
4.63" x 8.92" x 1.67"
