EDR96-24DC 96W 24V EDR Series Electronic 5-in-1 Dimmable LED Driver by EMCOD

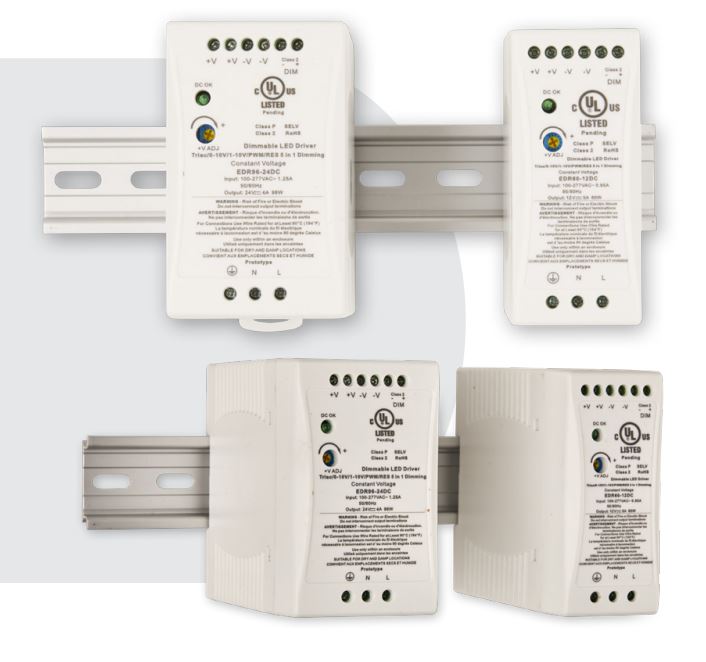

The EDR Series from EMCOD is a 5-in-1 Dimmable Electronic LED Driver with 5% minimum load and different features like Overload, Short circuit, and Thermal protection; Operating temperature -40C ~ +60C; Excellent Line and Load regulation. Available for a wide variety of compatible dimmers, with flicker-free dimming. Plastic case for Din Rail installation.

• Dimmable with TRIAC forward and reverse phase, 0/1-10V , resistor, PWM
• The enclosure is Plastic suitable for dry and damp location, with built-in class 2 wiring compartment, dry and damp location rated
• Enclosure Temperature does not exceed 70°C at 45°C ambient and fully loaded
• Temperature class B(130°C)
• The actual transformer 96W is encapsulated in the enclosure
• SKU EDR96-24DC
• UPC 810064711794
