Home Constant Current EUCO-1K4200GDA 1400W EUCO Series Constant Current LED Driver, RDM/DMX by Delta Electronics
Specification Sheet
Dimensions

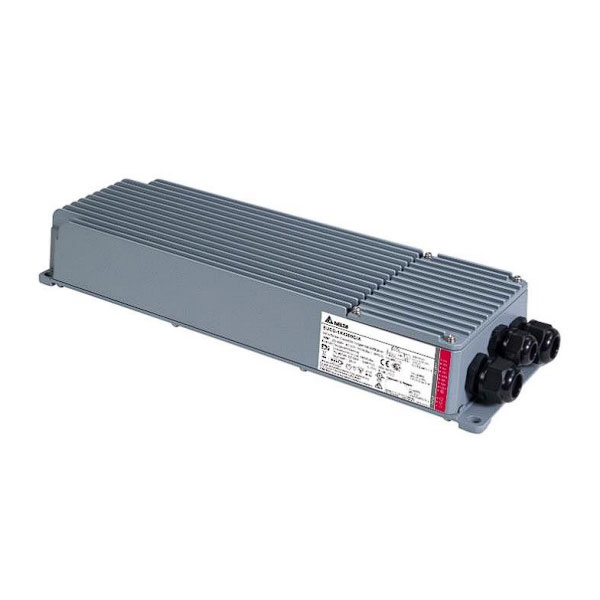

EUCO-1K4200GDA 1400W EUCO Series Constant Current LED Driver, RDM/DMX by Delta Electronics

$852.18


Delta EUCO ARENA SPORT 1400W series is a compact-single output LED driver, which is designed to provide ultimate flexibility and reliability to operate under a wide range of temperatures while retaining highly accurate specifications over its lifetime. The EUCO-1400W makes an ideal solution for Stadium Lighting due to its low ripple current level and flicker free, which is indispensable for Live or HDTV broadcasting conditions. Also due to its robust design, the EUCO-1400W is well-suited for industrial lighting, high mast lighting, and horticulture applications. This driver supports multiple dimming functions with a wide dimming range, which includes DALI-2 with D4i certification, RDM/DMX and autonomous dimming (STD and CLO), which ensures adaptability for dynamic atmospheres and seamless event adjustments. The EUCO-1400W driver offers a remote-control function, allowing the driver to be installed up to 300 meters from the luminaire, which provides greater flexibility in installation, operation, and easy maintenance.

  • 2 independent programmable output channels
  • Max. output power 1400W (2×700W/channel)
  • Wide input voltage: 198-440VAC
  • Ultra high Efficiency (97.9% Typ.)
  • Programmable output current range 700-2000 mA
  • Configurable single channel or multi-channel by DALI2 & D4i or RDM/DMX (2 × DT6 or 2 × DMX)
  • Wide dimming range 0.1%-100%
  • Low current ripple (1%)
  • Flicker free for HDTV broadcasting
  • After-glow effect free
  • High-accuracy integrated power metering
  • Constant Lumen Output (CLO)
  • Smart Timer Dimming (STD)
  • Input surge protection: DM 10kV; CM 10kV
  • IP66 & IK08 approval enclosure
  • Max remote distance 300 meters

SKU :
EUCO-1K4200GDA
Brand :
Delta Electronics
Max Wattage :
1400W
Input Voltage Range :
198-440V
Output Voltage :
150-550V
Current Range :
2000mA
Default Current :
2000mA
Dimmable :
DALI-2
Dimming Range :
0.1-100%
Dimensions (L x W x H) :
19.68" x 5.98" x 3.03"
