EUCO-2K1200GDA 2100W EUCO Series Constant Current LED Driver, RDM/DMX by Delta Electronics

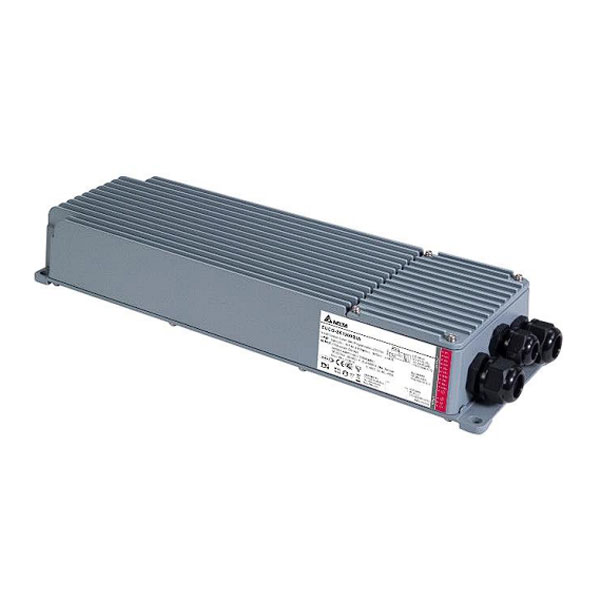

Delta EUCO ARENA SPORT 2K1 series with DALI 2 & D4i or RDM / DMX control functions are constant current non -isolated LED drivers. Compatible with wide input voltage range 220~400Vac from any system manufacturer for indoor and outdoor applications. With IP66 ingress protection and wide ambient operating temperature range from -40°C to +50°C, the driver can fulfill any harsh condition. The extremely low output current ripple makes the driver a typical application for outdoor stadium lighting

• 3 independent output channels: 2100W – max 700W
• per channel
• Nominal input voltage: 220-400VAC
• Ultra high Efficiency (97.8%)
• Control method: DALI2/D4i and DMX-RDM
• Programmable output current range 700-2000 mA
• Output voltage range from 250-550Vdc per channel
• Very low peak-to-peak current ripple (typ.1%) for HDTV broadcasting
• DALI-2 and DMX-RDM configurable single channel or multi-channel (up to 3 x DT6 or 3 x DMX)
• High-accuracy integrated power metering
• Constant Light Output (CLO) function
• Autonomous dimming via Midnight Centric Timer
• Wide dimming range 0.1-100% or 0.4-100%
• Input surge protection: DM 10kV; CM 10kV
• IP66 & IK08 enclosure
• Max remote distance 200 meters
