Home Constant Current EUCO-600200GDA 600W EUCO Series Constant Current LED Driver, RDM/DMX by Delta Electronics
Specification Sheet

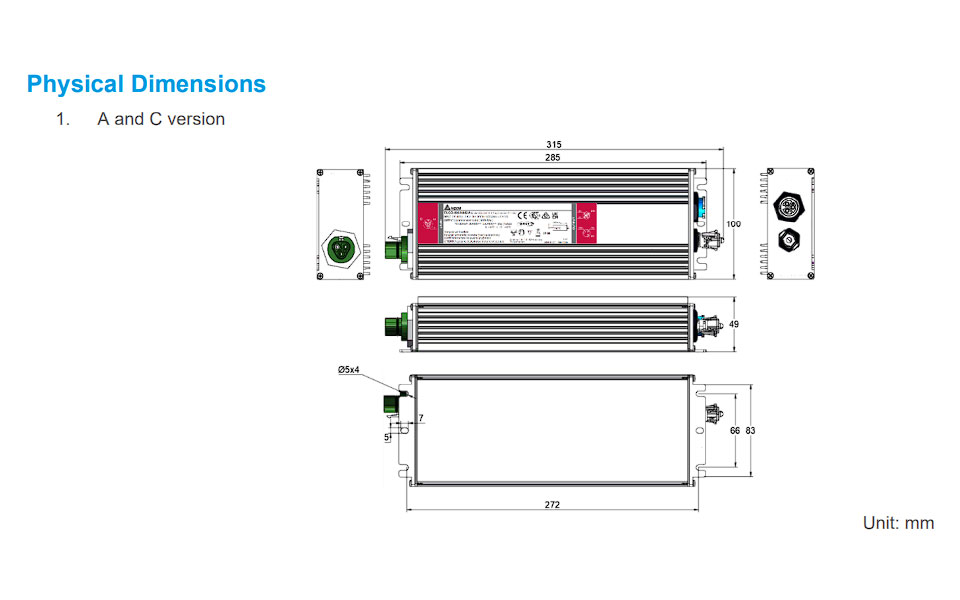

Dimensions

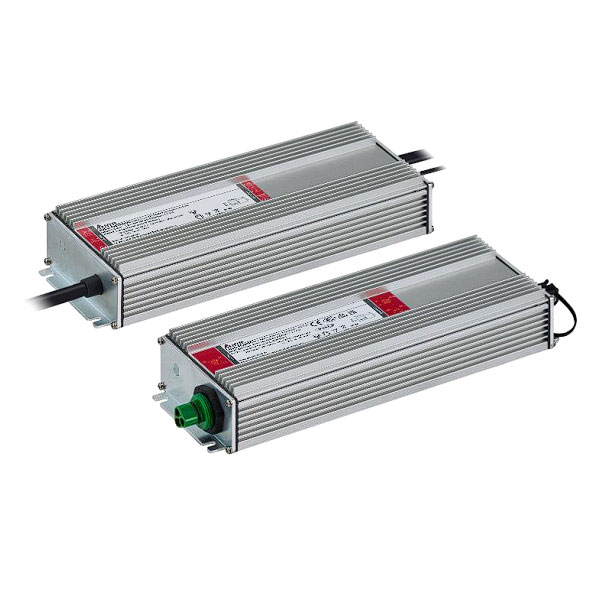

EUCO-600200GDA 600W EUCO Series Constant Current LED Driver, RDM/DMX by Delta Electronics

$454.13


Delta EUCO ARENA SPORT 600W series with DALI-2 & D4i or RDM/DMX control functions are constant current non-isolated LED drivers. It makes an ideal solution for Stadium Lighting due to its low ripple current level and flicker free, which is indispensable for Live TV broadcasting conditions. Also due to its robust design, the EUCO-600W is well-suited for industrial lighting, high mast lighting, and horticulture applications. This driver was specifically conceived and intended to offer remarkably high efficiency to achieve substantial energy savings. Additionally, a wide dimming range, advanced control, and autonomous dimming (Midnight Centric Timer) ensure adaptability for dynamic atmospheres and seamless event adjustments. The EUCO-600W driver offers a remote-control function, allowing the driver to be installed up to 300 meters from the luminaire, which provides greater flexibility in installation, operation, and easy maintenance for indoor and outdoor applications.

  • Output power: max 600 W
  • Wide input voltage: 198-440 Vac
  • Ultra high Efficiency 97.5%
  • Control method: DALI-2 & D4i and RDM/DMX
  • Programmable output current range 700-2000 mA
  • Constant Lumen Output (CLO)
  • Smart Timer Dimming (STD)
  • Wide dimming range 0.1-100%
  • High-accuracy integrated power metering
  • Input surge protection: DM 6kV; CM 10kV
  • Max remote distance 300 meters
  • Reliable IP66 input/output connectors
  • Low current ripple (typ.1%) for HDTV broadcasting
  • Afterglow effect free

SKU :
EUCO-600200GDA
Brand :
Delta Electronics
Max Wattage :
600W
Input Voltage Range :
198-440V
Output Voltage :
550V
Current Range :
2000mA
Default Current :
2000mA
Dimmable :
DALI-2
Dimming Range :
0.1-100%
Dimensions (L x W x H) :
12.40" x 3.94" x 1.93"
