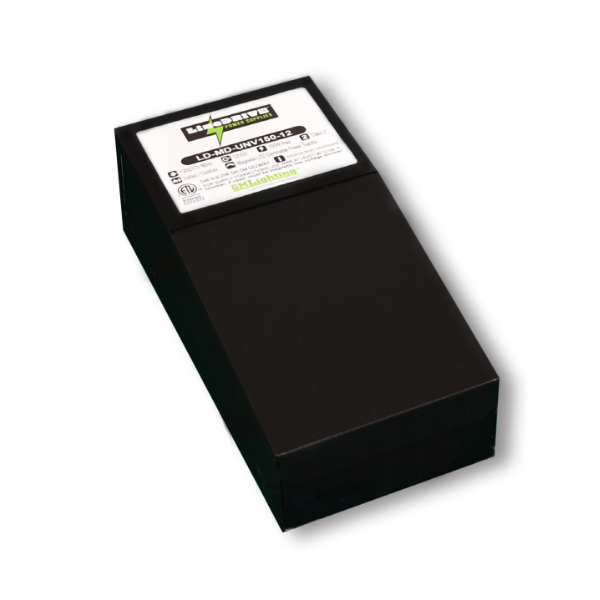

LD-MD-UNV150-12 LineDRIVE Series 150W 12V Magnetic LED Dimmable Power Supply by GM Lighting
$192.60
LineDRIVE Series 12VDC / 24VDC Electronic LED Power Supplies with low voltage outputs are designed to work with standard ELV/Incandescent TRIAC (leading edge) dimmer switch. Encased in a low-profile lightweight aluminum enclosure that includes multiple knock-outs to enable easy installation.
- Auto-reset protection for short circuit
- Dimmable with compatible MLV dimmers
- Suitable for indoor/outdoor wet locations when mounted vertically
- 12VDC
- 120/277VAC / 60Hz input
- Load: min. 20% to max. 80% for optimal performance
- ETL compliant Cert. CSA C22.2 No. 250.2
- Class 2
SKU :
LD-MD-UNV150-12
Brand :
GM Lighting
Max Wattage :
150W
Input Voltage Range :
120/277V
Output Voltage :
12V
Current Range :
570-1330mA
Default Current :
570mA
Dimmable :
MLV
Dimming Range :
15-100%
Dimensions (L x W x H) :
11.02" x 4.88" x 3.62"
