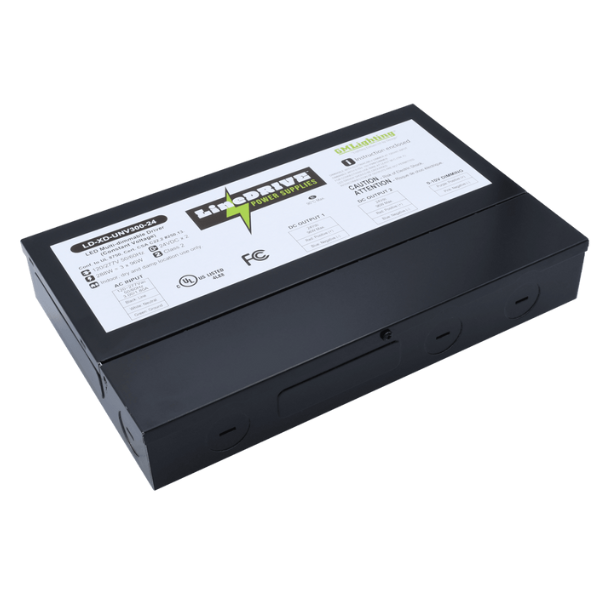

LD-XD-UNV300-24 LineDRIVE Series 300W 24V Multi-Dim Electronic LED Dimmable Power Supply by GM Lighting
$283.50
GM's Multi-Dim LineDRIVE power supplies offer stable operation with standard line voltage and low voltage dimmer controls to make installation easy. Compatible with Triac, ELV, MLV and 0-10V dimmers for a wide array of applications. Dimming down to 1%.
- Output: Class 2, 24VDC, constant voltage
- Multi-output driver has 3 output channels for powering several Class 2 loads from one unit
- Input: 120V / 277V
- Dimmable: Triac, ELV, MLV, 0-10V, PWM dimming (Minimum dimming: 1%)
- Stable operation, flicker-free dimming
- Integrated wiring compartments with separate line voltage and low voltage sections
- Compatible with typical phase dimmers and 0-10V controls
- Line voltage compartment meets NEC code, up to (3) 12 AWG conductors
- Over-current, over-voltage, and over-temperature protection
SKU :
LD-XD-UNV300-24
Brand :
GM Lighting
Max Wattage :
300W
Input Voltage Range :
120/277V
Output Voltage :
24V
Current Range :
4000mA
Default Current :
4000mA
Dimmable :
0-10V, ELV, MLV, PWM, TRIAC
Dimming Range :
1-100%
Dimensions (L x W x H) :
9.51" x 6.35" x 1.59"
