Home Constant Current LEG150W-280-C0530-D 150W 530mA Constant Current Dimmable Switch Mode LED Driver by Thomas Research
Specification Sheet

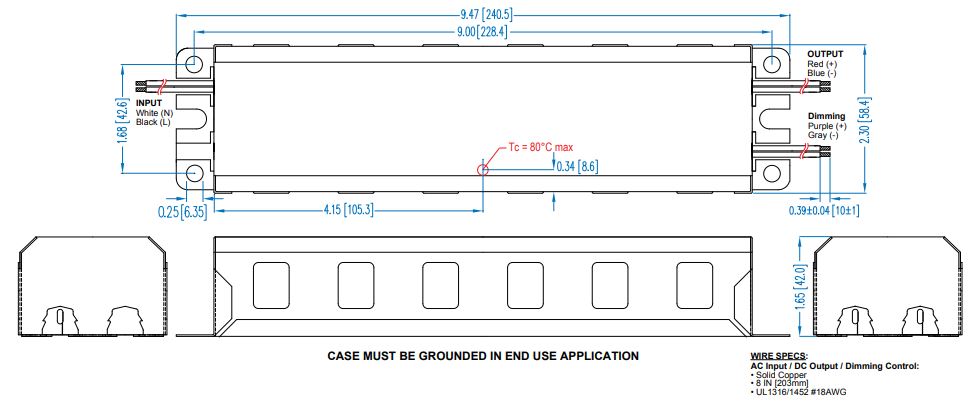

Dimensions

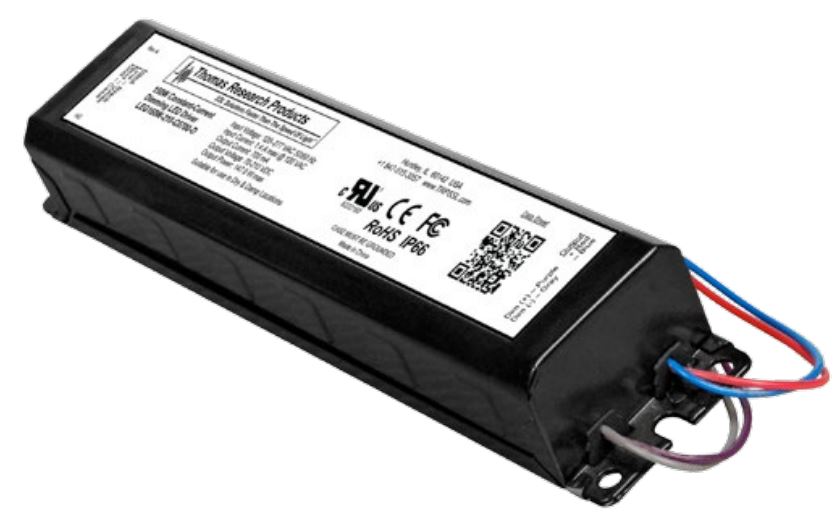

LEG150W-280-C0530-D 150W 530mA Constant Current Dimmable Switch Mode LED Driver by Thomas Research

$129.99


The LEG-150W Series– Fixed Output and Dimmable are Constant Current, Non-Isolated Switch Mode LED Drivers in Black Magic Thermal Advantage™ Metallic Housing.

  • UL Dry & Damp Location Rated
  • IP66
  • High Power Factor
  • UL8750, EN61347, CSA 22.2
  • UL Type HL Rated for Hazardous Locations



  Note: Product has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


SKU :
LEG150W-280-C0530-D
Brand :
Thomas Research Products
Max Wattage :
150W
Input Voltage Range :
120-277V
Output Voltage :
94-280V
Current Range :
530mA
Default Current :
530mA
Dimmable :
0-10V
Dimming Range :
10-100%
Dimensions (L x W x H) :
9.47" x 2.30" x 1.65"
