Home Constant Current VEL19070MVH-1 LMV Series, 750mA Constant Current LED Driver by Espen
Specification Sheet
Dimensions

VEL19070MVH-1 LMV Series, 750mA Constant Current LED Driver by Espen

$15.83

The LMV series of LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarantee the long life operation.

  • Universal Voltage (120-277V)
  • Outdoor Type 1
  • Constant Current
  • 0-10V Dimming
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with LED modules
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

SKU :
VEL19070MVH-1
Brand :
Espen
Max Wattage :
19W
Input Voltage Range :
120-277V
Output Voltage :
15-27V
Current Range :
700mA
Default Current :
700mA
Dimmable :
0-10V
Dimming Range :
0-100%

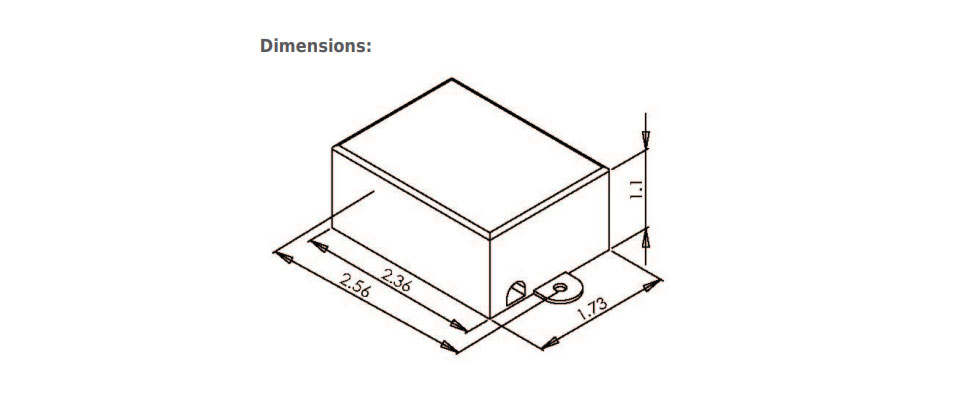

Dimensions (L x W x H) :
2.36" x 1.73" x 1.1"
