Home Constant Current VEL19105120HDA-2 LPD Series, 1050mA Constant Current LED Driver by Espen
Specification Sheet

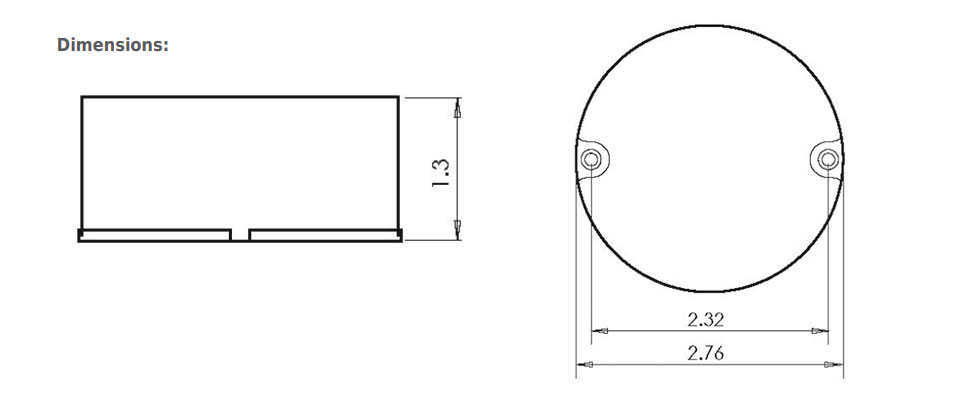

Dimensions

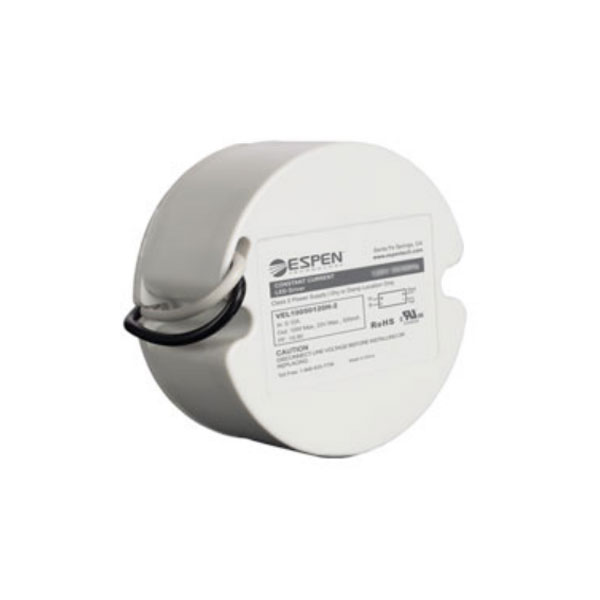

VEL19105120HDA-2 LPD Series, 1050mA Constant Current LED Driver by Espen

$39.99

The LPD series of outdoor LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarantee the long life operation.

  • Dedicated 120V
  • Outdoor Type 1
  • Constant Current
  • Triac Phase Dimming
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with LED modules
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

SKU :
VEL19105120HDA-2
Brand :
Espen
Max Wattage :
19.6W
Input Voltage Range :
120V
Output Voltage :
15-18V
Current Range :
1050mA
Default Current :
1050mA
Dimmable :
TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
2.76" x 2.76" x 1.3"
