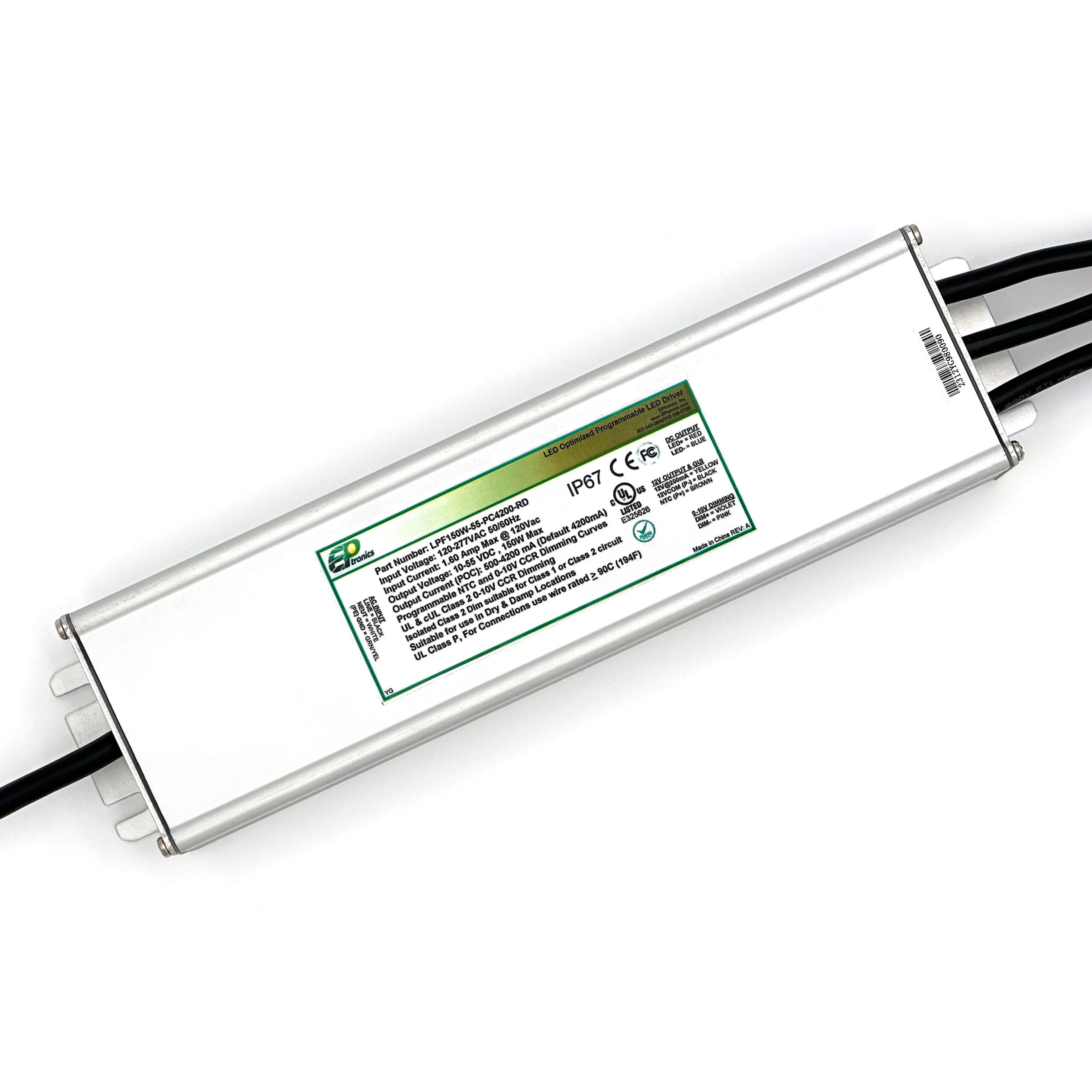

LPF150W-55-PC4200-RD 150W Wired Programming LED Driver with 12V Auxiliary by EPtronics
$139.62
- LPF150W Series (150 Watt)
- Constant Current Programmable LED Driver
- Dimming Option: Programmable 0-10V Linear or LOG Dimming 1% – 100%
- Auxiliary Output: 12VDC @ 0 – 200mA
- Output Voltage: 55VDC
- Output Current: 4200mA
- Input Universal AC: 120 – 277VAC, 50/60Hz
- Safety: UL8750, CSA 22.2 Listed Class P, Type HL ((Hazloc)
- Water resistant and Dust Proof: IP67, NEMA4, for Dry and Damp Locations
SKU :
LPF150W-55-PC4200-RD
Brand :
EPtronics
Max Wattage :
150W
Input Voltage Range :
100-305V
Output Voltage :
10-55V
Current Range :
500-4200mA
Default Current :
4200mA
Dimmable :
0-10V
Dimming Range :
1-100%

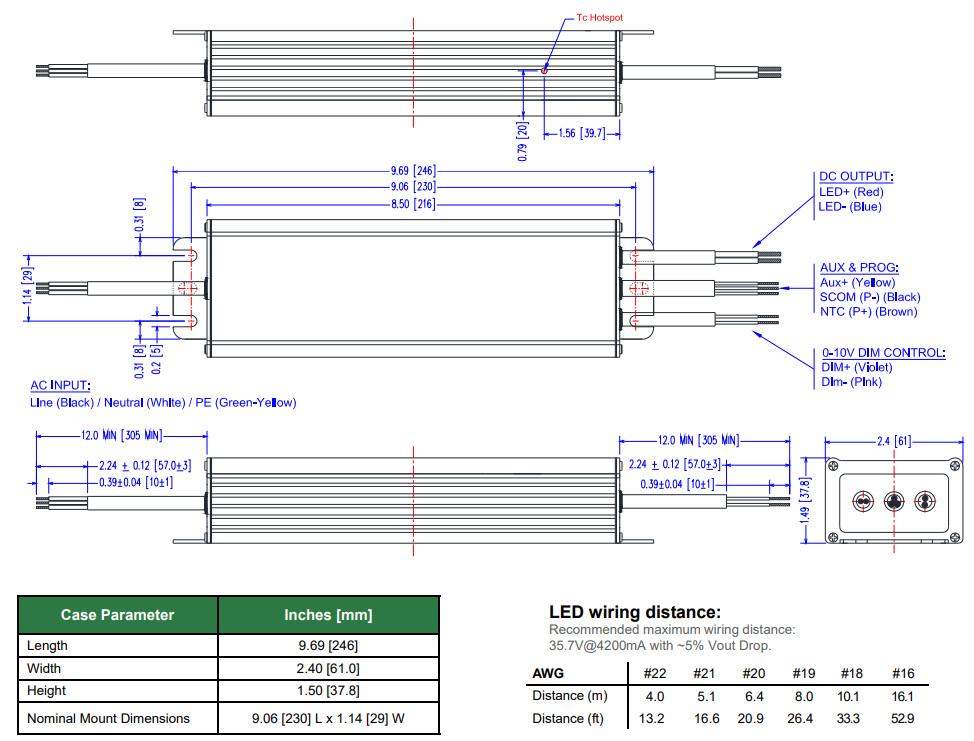

Dimensions (L x W x H) :
9.69" x 2.40" x 1.50"
