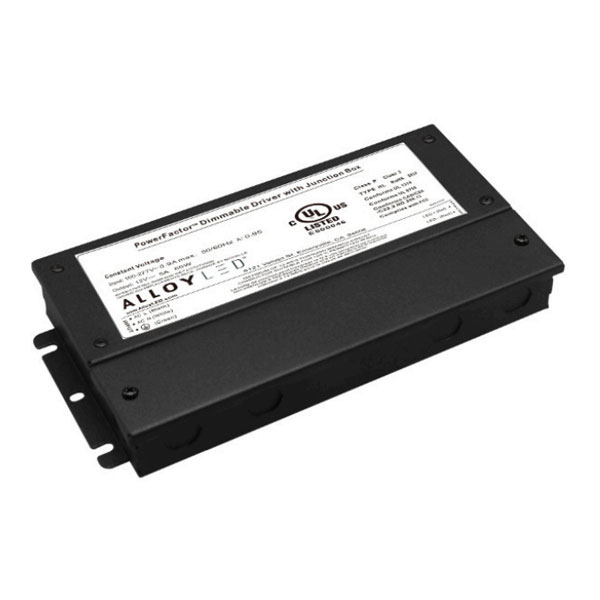

Multi-Tap 288W Dimmable LED Driver with Junction Box by Alloy LED

$586.67


0-10V dimmable LED drivers are designed to integrate into existing 0-10V dimming systems and provide smooth, efficient power and dimming capability for LED lighting. These drivers include an inspection-ready UL Listed junction box enclosure and offer unparalleled performance for 0-10V systems. These drivers are already derated, which means they can be loaded to maximum wattage capacity.

  • Multi-tap models maintain Class 2 compliance in large applications
  • 100% to 1% dimming
  • IP66 for use outdoors or indoors in dry/damp/wet environments
  • 100~277V AC input for commercial and residential
  • 5 year warranty

SKU :
AL-98-06-24288-MT
Brand :
Alloy LED
Max Wattage :
288W
Input Voltage Range :
120-277V
Output Voltage :
24V
Current Range :
12000mA
Default Current :
12000mA
Dimmable :
ELV, MLV, TRIAC
Dimming Range :
0-100%

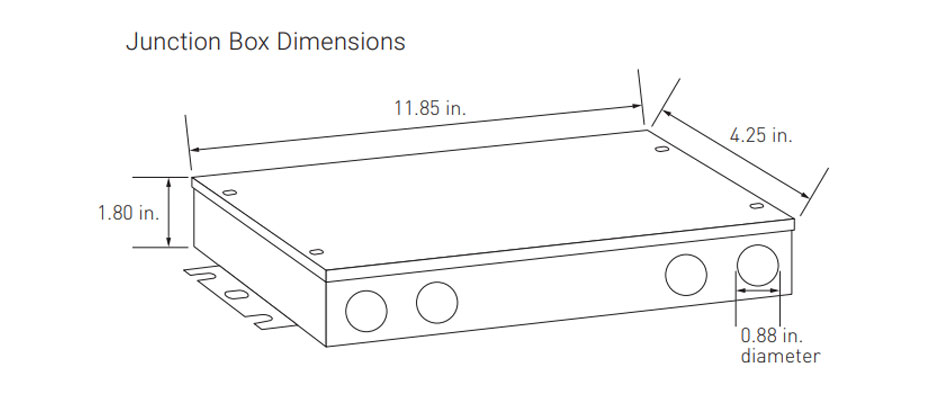

Dimensions (L x W x H) :
11.85" x 4.25" x 1.8"
