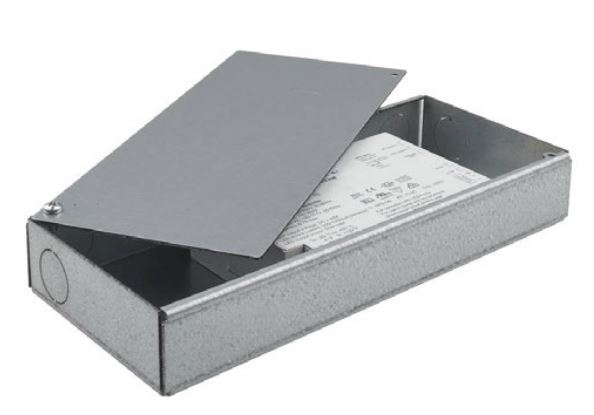

P70772 DMX 50W Cobraflex Series, 350mA Dimmable Remote LED Constant Current Driver by Bruck

$253.33

This DMX dimmable protocol LED driver provides smooth flicker-free dimming, with remote mounting distance up to 46' (20AWG), 72' (18AWG) to LED load. It offers up to four programmable currents for various lumen offerings.

  • 50W max output
  • 8-55Vdc output per channel
  • Isolated dimming circuit
  • DMX compatible
  • Operating temperature: -13°F to 122°F
  • Class II rated
  • Suitable for use in damp and dry locations

SKU :
P70772-COBRA-DMXZ-350
Brand :
Bruck
Max Wattage :
50W
Input Voltage Range :
120-277V
Output Voltage :
8-55V
Current Range :
350mA
Default Current :
350mA
Dimmable :
Amp Dimming
Dimming Range :
0-100%
Dimensions (L x W x H) :
9.07" x 3.94" x 1.44"
