Home Constant Voltage PL-120-12-U 120W 12V Universal Dual Output Constant Voltage Power Supply by Principal LED
Specification Sheet

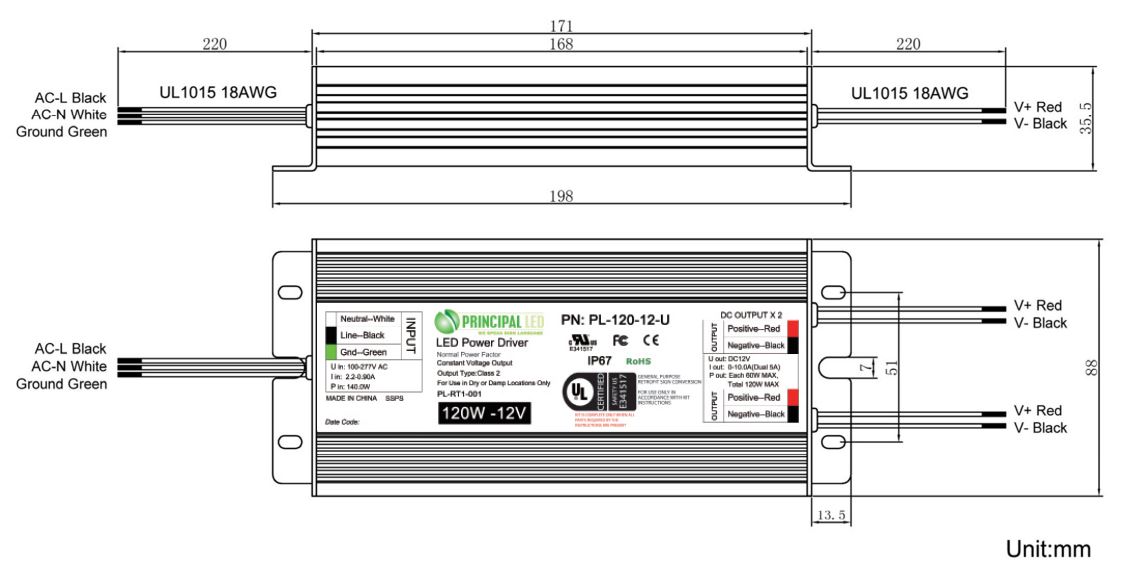

Dimensions

PL-120-12-U 120W 12V Universal Dual Output Constant Voltage Power Supply by Principal LED

$130.22

Operating from 120 VAC to 277 VAC with two 60W legs, Principal Sloan’s universal 12 VDC 120W LED power supply cuts the number of drivers required for a job—including the installation time—in half.

  • Dual output (2, 5A channels)
  • Aluminum shell, silicone potted
  • 100% full load burn-in tested
  • Dry or Damp Locations Rated
  • UL/uCL Class 2 power source
  • Input Current: 2.2A @ 120 VAC, 0.9A @ 277 VAC



  Note: Product has been discontinued by the manufacturer, but a replacement is available. Any orders of this product will be fulfilled with an equivalent substitute.


SKU :
PL-120-12-U
Brand :
Principal LED
Max Wattage :
120W
Input Voltage Range :
100-277V
Output Voltage :
12V
Current Range :
0-5000mA
Default Current :
Dimmable :
Non-Dimming
Dimming Range :
Not Available
Dimensions (L x W x H) :
6.73" x 3.46" x 1.39"
