Home Constant Current P70470 50W 350mA DMX Constant Current Dimmable LED Driver with Box by Bruck
Specification Sheet
Dimensions

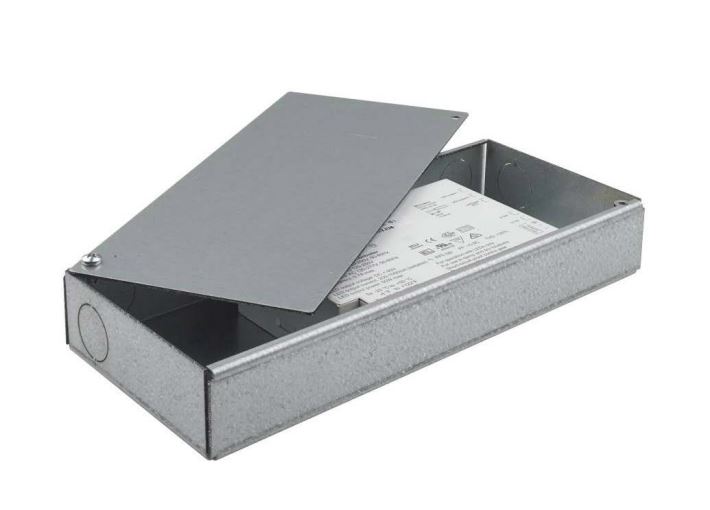

P70470 50W 350mA DMX Constant Current Dimmable LED Driver with Box by Bruck

$366.67

This 0-10V dimmable protocol LED drive provides smooth flicker-free dimming. It offers up to four Constant Current options.

  • 50W max output
  • 3 separately controllable LED outputs
  • DMX compatible
  • 2-55Vdc output per channel
  • Linear dimming curve
  • Operating temperature: -4°F to 122°F
  • Class II rated
  • Suitable for use in damp and dry locations

SKU :
P70470-350
Brand :
Bruck
Max Wattage :
50W
Input Voltage Range :
120-277V
Output Voltage :
2-55V
Current Range :
350mA
Default Current :
350mA
Dimmable :
Amp Dimming
Dimming Range :
0-100%
Dimensions (L x W x H) :
5.12" x 3" x 1.25"
