Home Constant Current VEL12050120HDA-3 LPD Series, 500mA Constant Current LED Driver by Espen
Specification Sheet

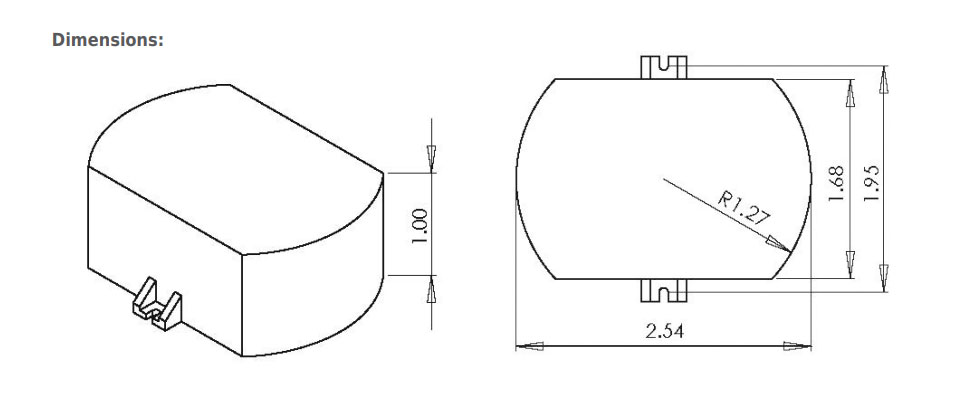

Dimensions

VEL12050120HDA-3 LPD Series, 500mA Constant Current LED Driver by Espen

$39.99

The LPD series of outdoor LED drivers offer the perfect power to fixtures in any severe environment. Accurate constant current design keep the performance with high efficiency. Metal housing provides best heatsinking to guarantee the long life operation.

  • Dedicated 120V
  • Outdoor Type 1
  • Constant Current
  • Triac Phase Dimming
  • Integrates with Adaptive Lighting Control Systems
  • Compatible with LED modules
  • UL, cUL, UL8750 Class 2
  • FCC Part 15 Class A
  • Operating Temperature: -22°F to 122°F
  • Storage Temperature: -40°F to 131°F

SKU :
VEL12050120HDA-3
Brand :
Espen
Max Wattage :
14W
Input Voltage Range :
120V
Output Voltage :
22-28V
Current Range :
500mA
Default Current :
500mA
Dimmable :
TRIAC
Dimming Range :
0-100%
Dimensions (L x W x H) :
2.54" x 1.68" x 1"
