Home Constant Current XI040C110V054VPT1 Advance Xitanium SR 40W 1.1A Programmable LED Driver by Signify
Specification Sheet

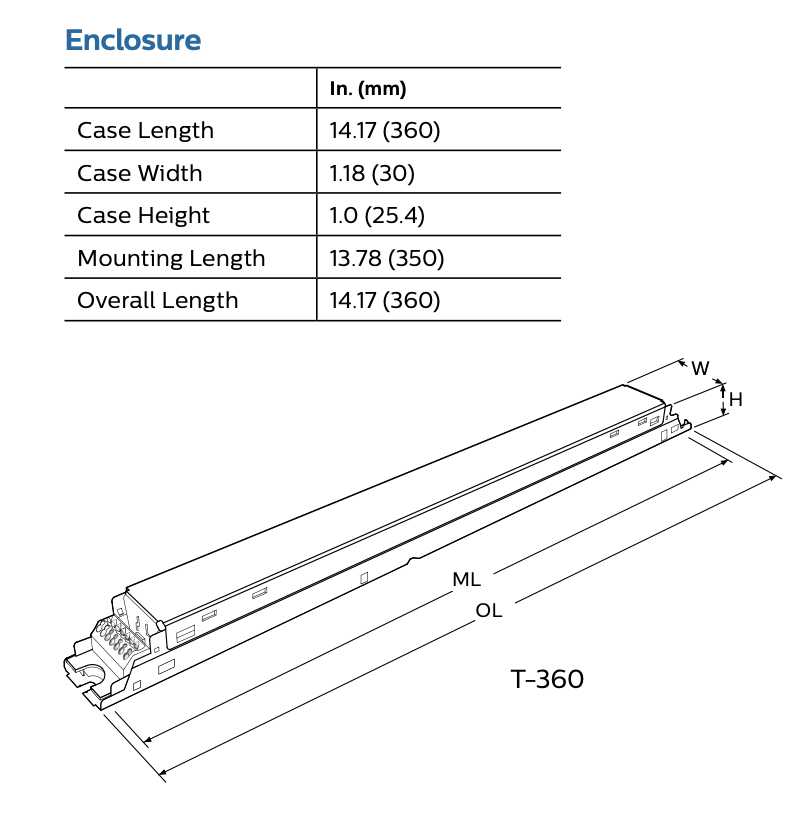

Dimensions

XI040C110V054VPT1 Advance Xitanium SR 40W 1.1A Programmable LED Driver by Signify

$80.74


  • Standard digital interface based on DALI 2.0 for connection of one driver to one sensing/RF device
  • Auxiliary power for sensors through digital connection, default "on" for connection to single sensing/RF device
  • Occupancy and accurate energy reporting
  • Dim-to-off capability
  • Low standby power (<1W)
  • Drive current setting via SimpleSet wireless programming or Rset2
  • 5-year limited warranty
  • Enable interoperability with diverse wireless sensors/network systems
  • Reduce complexity and cost of fixture by eliminating auxiliary components ordinarily required for powering sensors, switching fixture off and monitoring energy use
  • Future proof through standard interface to any suitable sensor and ease of adjustable drive current
Model # XI040C110V054VPT1
Material # 929000724613
UPC # 781087137017


Please specify the desired current output (mA) in the box below. If you do not know it, please specify the manufacturer and model number of the fixture or contact us for assistance.

SKU :
XI040C110V054VPT1
Brand :
Signify
Max Wattage :
40W
Input Voltage Range :
120-277V
Output Voltage :
27-54V
Current Range :
100-1100mA
Default Current :
1100mA
Dimmable :
DALI
Dimming Range :
5-100%
Dimensions (L x W x H) :
14.17" x 1.18" x 1"
