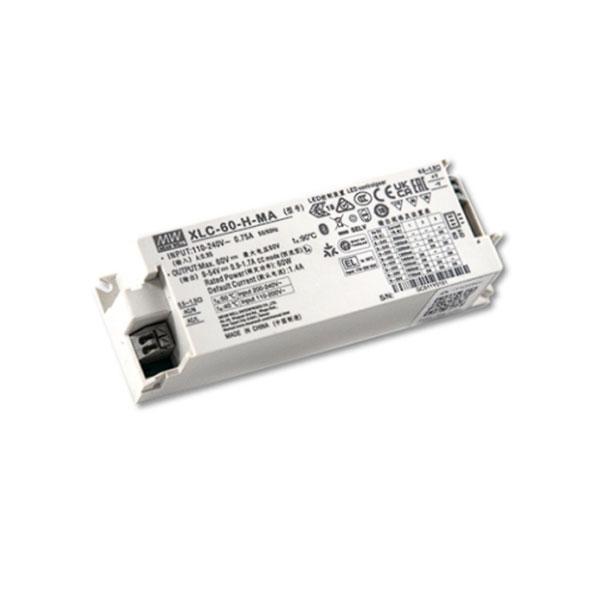

XLC-60-12-MA Multiple Stage Constant Voltage LED Driver by Mean Well

XLC-60-MA series is a 60W with constant power and constant voltage output LED driver. It can operate from 100-305V AC and output current ranging between 900mA to 1700mA selectable by DIP switch. Thanks to high efficiency up to 90%, it is able to operate for -25ºC~90ºC case temperature under free air convection. XLC-60-MA series is designed based on latest safety regulations with matter wireless dimming. It provide more flexibility for LED lighting application.

• Constant power mode output with multiple stage selectable by DIP switch (H-type)
• Constant voltage mode output (12/24/48V)
• Plastic housing with Class II and PFC design
• Flicker-free, complying with CE ErP directive
• Matter over thread, Matter 1.3 specification
• 5 years warranty
